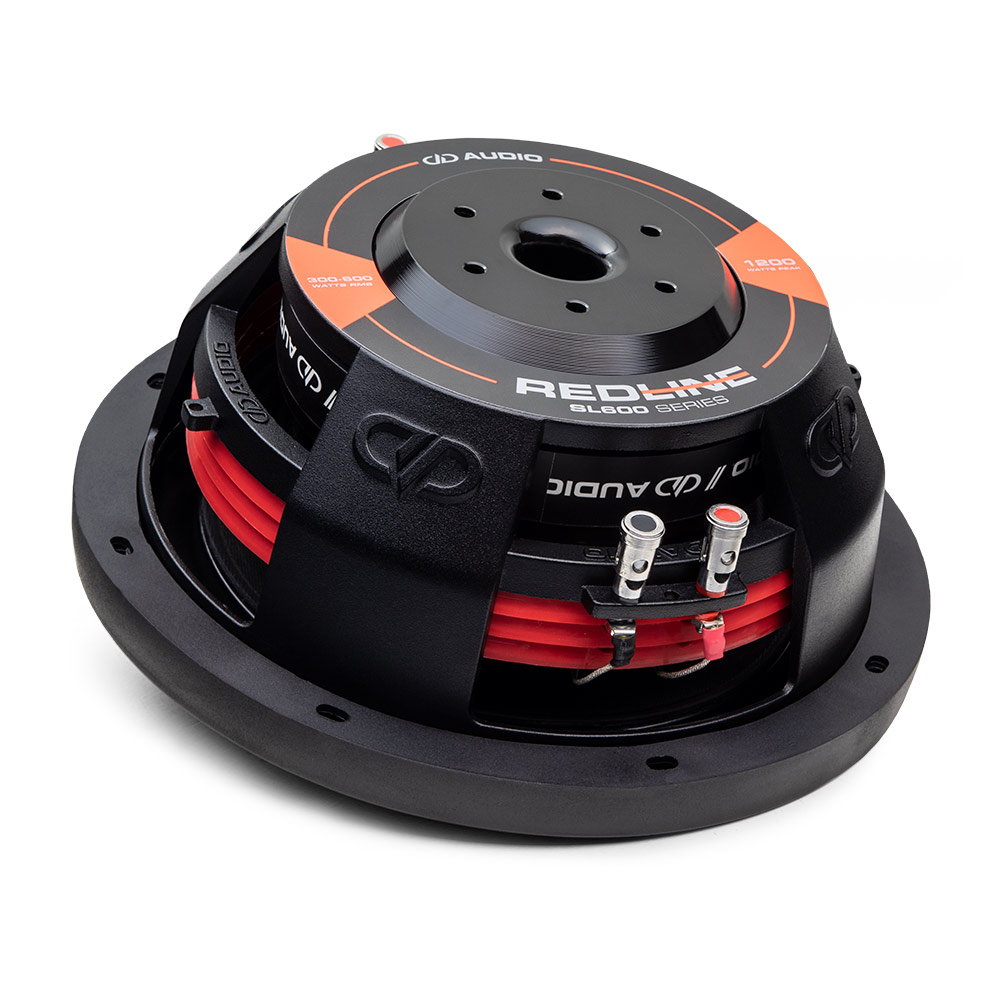

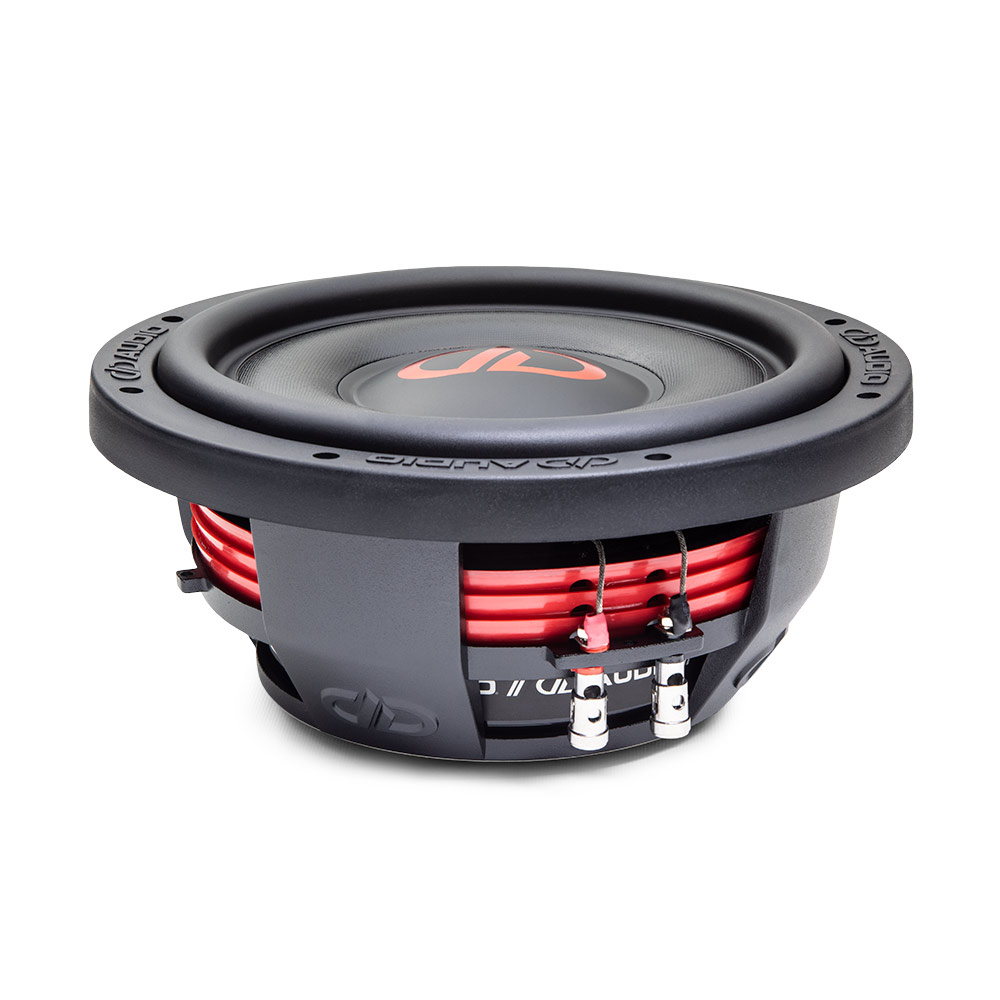

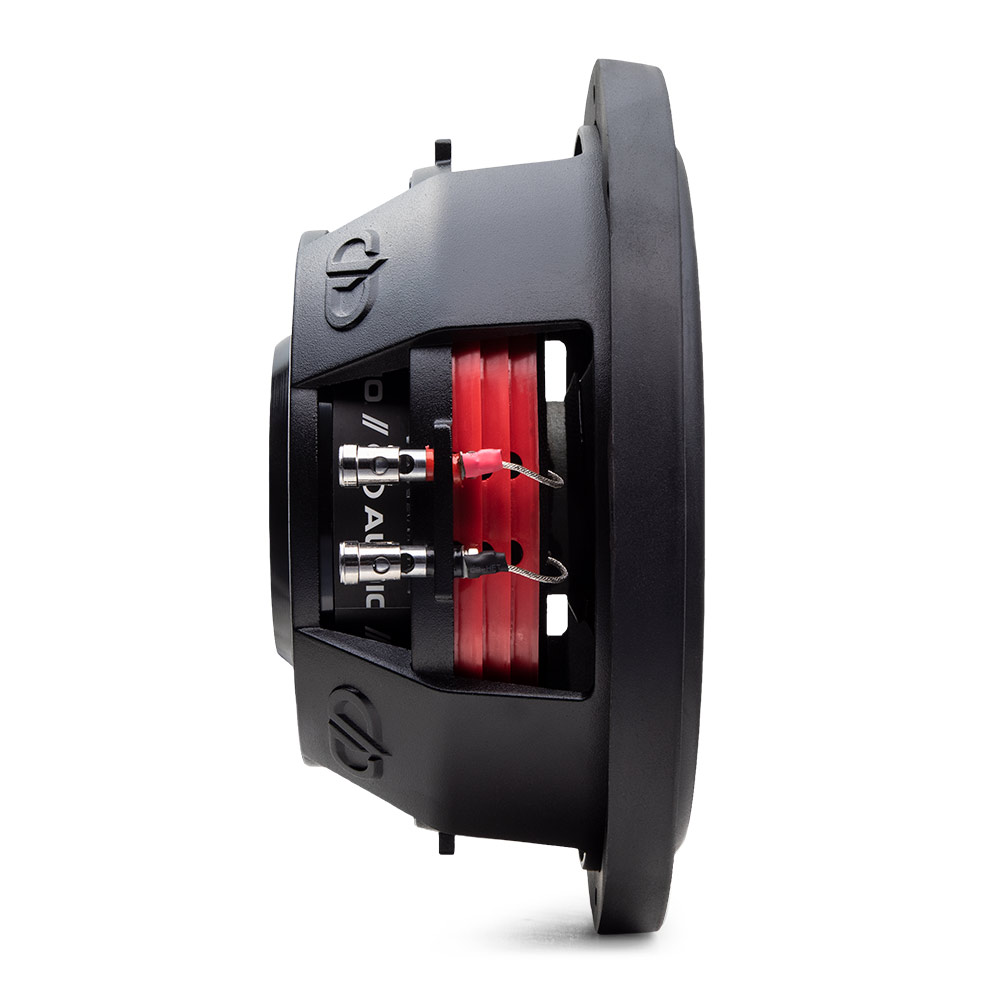

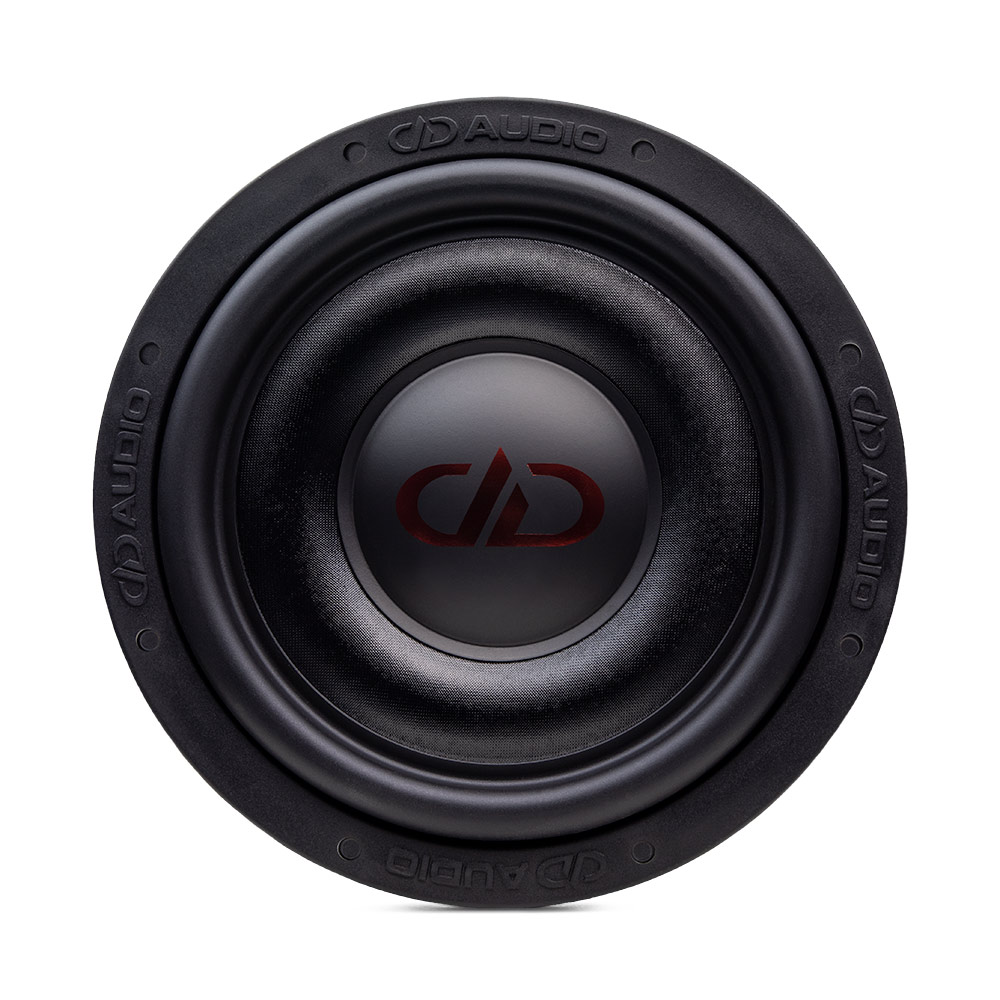

DD Audio SL610 D4

The SL600 series subwoofers, which include the DD Audio HI-DEF SL610 10″ (25cm) flat subwoofer, feature a very shallow mounting depth, and the suspensions have been tuned to perform exceptionally well in sealed and small bass-reflex enclosures. To ensure high power handling, good cooling and large excursion, the SL600 subwoofers feature 2.5-inch high-temperature voice coils, 72-ounce magnets, rear panel coil venting and an EROM surround. One of the unique features of the SL600 is the three-layer, low-profile diaphragm cone. By compressing a layer of foam between two layers of cellulose, the cone is as light and stiff as a standard cone, yet shallow enough to allow a suspension travel equivalent to that of a full-sized subwoofer. Features: 10″ (25cm) subwoofer with EROM surround. High temperature 2.5″ voice coil Double layer spider system Three-layer flat diaphragm body 72oz magnet Coil gap ventilation at rear plate DD cast aluminum frame Speaker size (In): 10 Watts RMS: 300 - 600 Watt peak power: 1200 Impedance: D4 Voice coil (inch): 2.5 Data: Fs (Hz): 29 Qms: 6.878 Qes: 0.393 Qts: 0.372 Vas: 26.769 Xmech (MM): 40 Xmax (MM): 14.5 Dimensions: Frame outer diameter (cm): 26.92 Frame outer diameter with gasket (cm): 27.4 Mounting diameter (cm): 23.5 Mounting depth (cm): 10.1 Motor diameter (cm): 16,51 motor depth (cm): 3.81 woofer displacement : 0.84 litre Shipping weight : 7 kg Enclosure recommendations: Closed cabinet : 14-28 litres Bass reflex cabinet : 14-35 litres.
