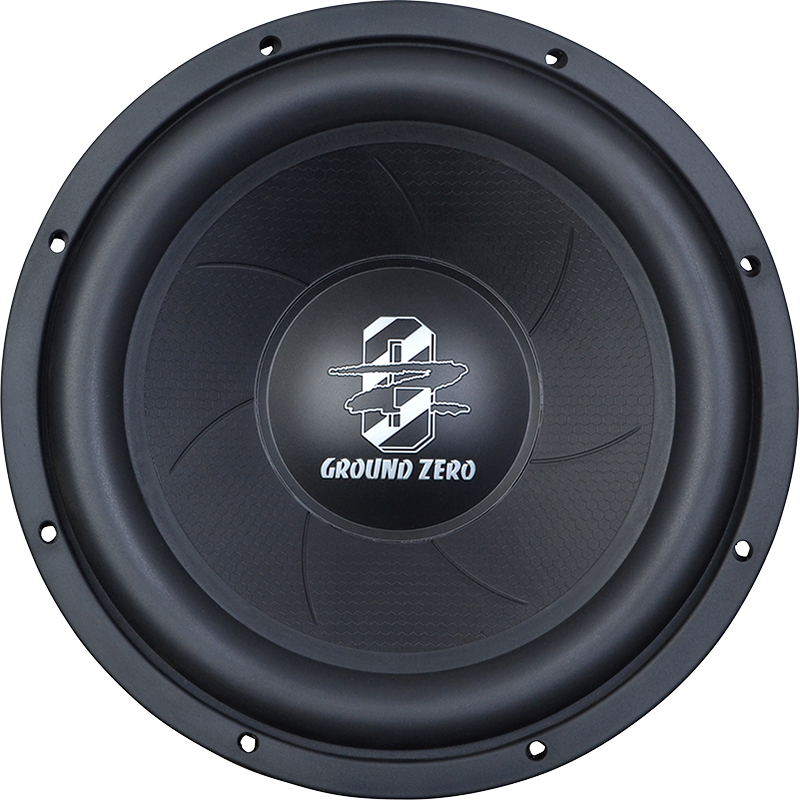

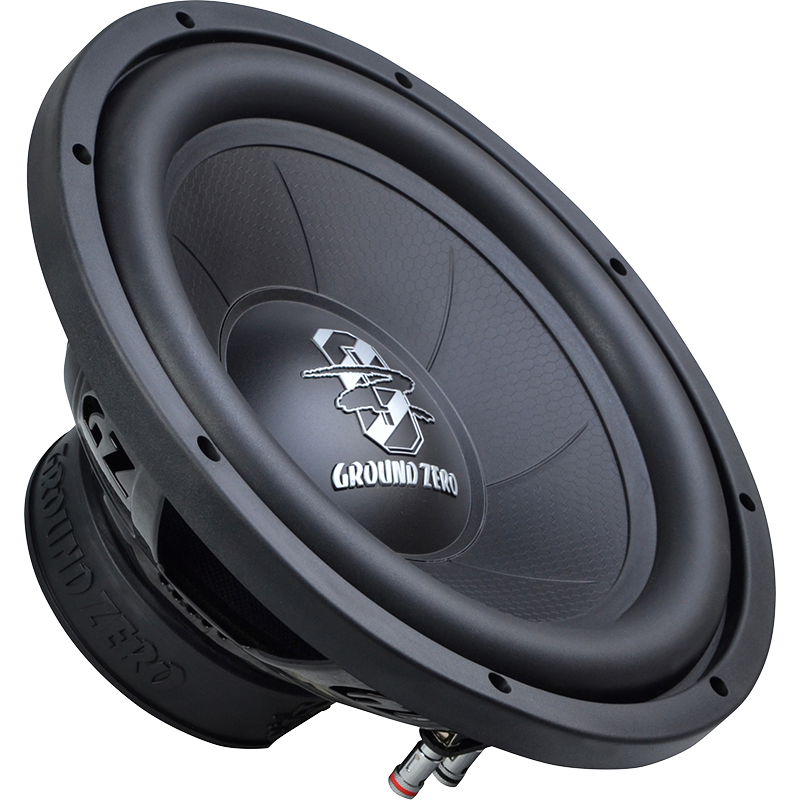

All GZIW subwoofers have a new updated voice coil, andspirally stiffened IMPP dust cap with 3D structure logo. This significantly affects the resonance of the cone, so the redesigned GZIW guarantees an even tighter kick!Don´t get fooled by the affordable price! These budget class XSPL-monsters are designed with Klippel-optimization to squeeze out every single desibel that is possible to get. Voice coil cooling is very efficient and long excursion gives you a LOT of bass. Very linear impedance curve makes it possible to really extract all the power from the amp to these subwoofers.
Diameter
30 cm / 12″
Power Handling (RMS)
350 Watts
Impedance
4 Ohms
Efficiency
88 dB
Power Recommendation
200 – 400 Watts
Voice Coil
50 mm / 2″ copper
Membran Layout
HQPP cone with 3D structure
Max. Excursion (Xmax)
28 mm / 1.10″
Mounting Ø
287 mm / 11.30″
Mounting Depth
149 mm / 5.87″
Resonance Frequency (Fs)
30 Hz
Overall Qaulity (Qts)
0.58
Equiv. Air Volume (Vas)
69.3 L / 2.45 cu.ft.
