AMPIRE KVX-CRAFTER

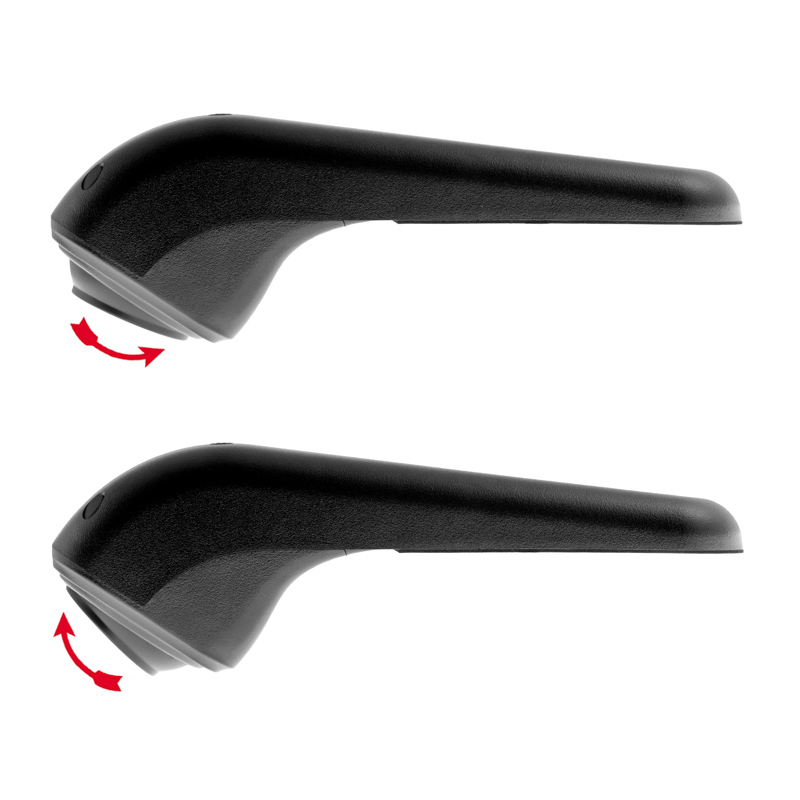

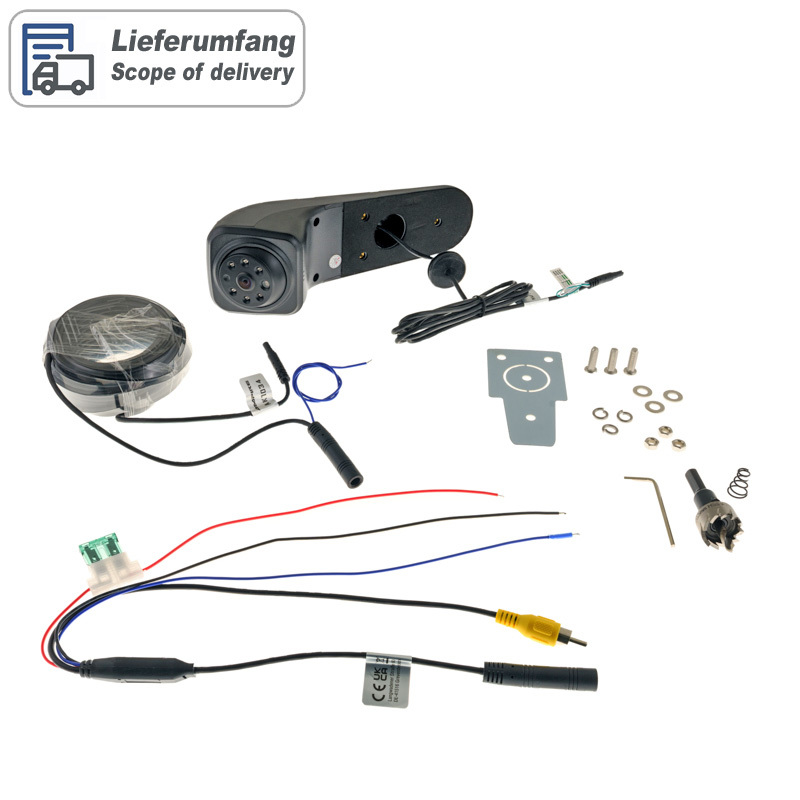

Vehicle-specific CVBS (NTSC) rear view cameraCOMPATIBILITY- Volkswagen Crafter 2 from model year 2017 onwards. The camera is mounted over the factory brake light lens.- MAN TGE from model year 2017 onwards. The camera is mounted over the factory brake light lens.The camera is also suitable for 24/7 continuous use. TECHNICAL DATA - Mirrored image display - Guide lines: factory-set to on (can be turned off) - Image sensor: 1/4″ CMOS PC7070 - Resolution: 648x488 pixels - Viewing angle 170° diagonal - Viewing angle 120° horizontal - Vertical camera adjustment 20° - Image format: NTSC - 580 lines resolution - IP68 waterproof - Minimum illumination: 0 lux - Integrated LED infrared illumination (6 LEDs) - Operating voltage: 12 volts DC - Power consumption: max. 150mA - Operating temperature: -30° to 70°C - Color: black - Cable length: 10 meters with 4-pin MINI-DIN connectors - E approval E9-10R-05.1652 - CE approval EN 55022: 2010 EN 61000-3-2:2006+A1:2009+A2:2009 EN61000-3-3:2008 EN 55024:2010 - FCC approval ANSI C63.4-2003 SCOPE OF DELIVERY - Rear view camera - AK1035 power supply unit - AK1034 mini-DIN extension cable 10m IMPORTANT NOTE Depending on the roof structure and the trailer coupling installed on the vehicle, it may not be possible to see the trailer coupling on the monitor.
