Triton 10XRL800
2 390 SEK
- Säkra betalningar genom klarna
- Chatt - Nästan dygnet runt!
- Frakt 150kr (Fraktfritt över 3000:-)
- Leverans mellan 2-5 dagar!
- SkickNy
Beskrivning
Art.nr: Triton 10XRL800

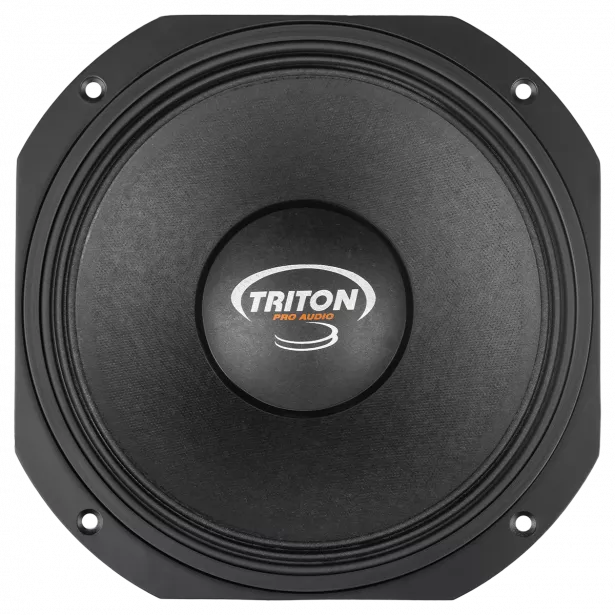

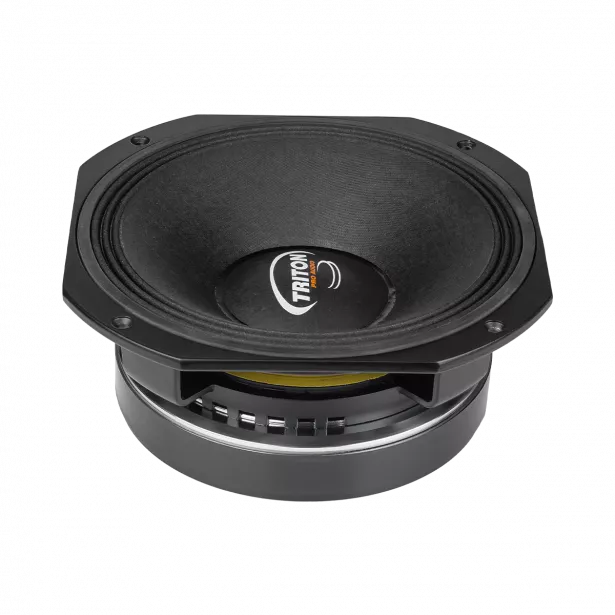

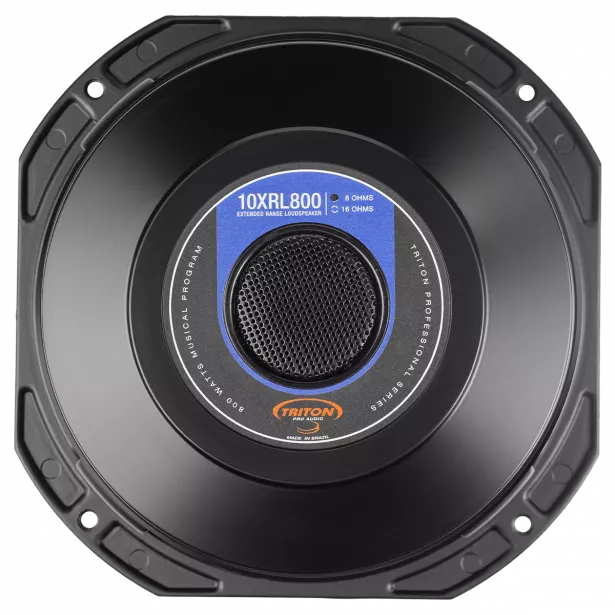

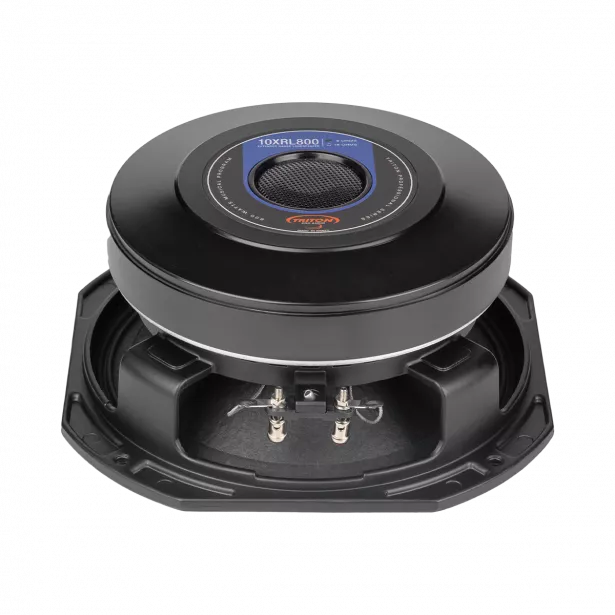

Triton 10XRL800 8ohm
The 10XRL800 is a full range speaker with good mid-bass reproduction.
3” (76mm) moving coil – high power with rectangular Copper-Clad Aluminum wire.
Cone specially developed for reproducing medium frequencies with clarity and naturalness.
Shorting rings in the magnet assembly reduce harmonic distortion and extend frequency response at all power levels.
Light and resistant aluminum housing with integrated ventilation system for better heat dissipation and reduced compression due to power.
Extended frequency response with very high performance, allowing use as fullrange or mid-bass in LINE ARRAY systems or 2-way speakers with excellent performance.
| oving coil diameter: | 3” (76mm) |
| Moving coil material: | Rectangular wire - CCAW |
| Maximum peak-to-peak excursion: | 21mm |
| Baffle cutting diameter: | 224mm |
| Volume occupied by the speaker: | 1.96 L |
| Net weight: | 7.8 kg |
| Weight with packaging: | 8.6 kg |
| Package dimensions (WxHxD): | 27.5 x 13.5 x 27.5 cm |
| Volume occupied by packaging: | 0.01 m³ |
| Nominal diameter: | 10” |
| Nominal impedance: | 8 Ω |
| Frequency response: | 70 Hz to 6.2 kHz (3) |
| Music program power: | 800W (2) |
| Maximum continuous power: | 400 W AES (1) |
| Sensitivity: | 101 dB SPL (1W@1m) |
| Fs: | 76,14 Hz |
| Re: | 5,2 Ω |
| Qms: | 5,940 |
| Qes: | 0,206 |
| Qts: | 0,199 |
| Vas: | 27,937 L (0,986 pés³) |
| Sd: | 0,0347 m² (53,785 pol²) |
| Xmax (Linear Mathematical): | 4,7 mm |
| Bl: | 17,972 T/m |
| Le @ 1kHz: | 0,10 mH |
| Mms: | 26,73 g |
| N° | 5,8 % |
Filer och media
 | Manual |
