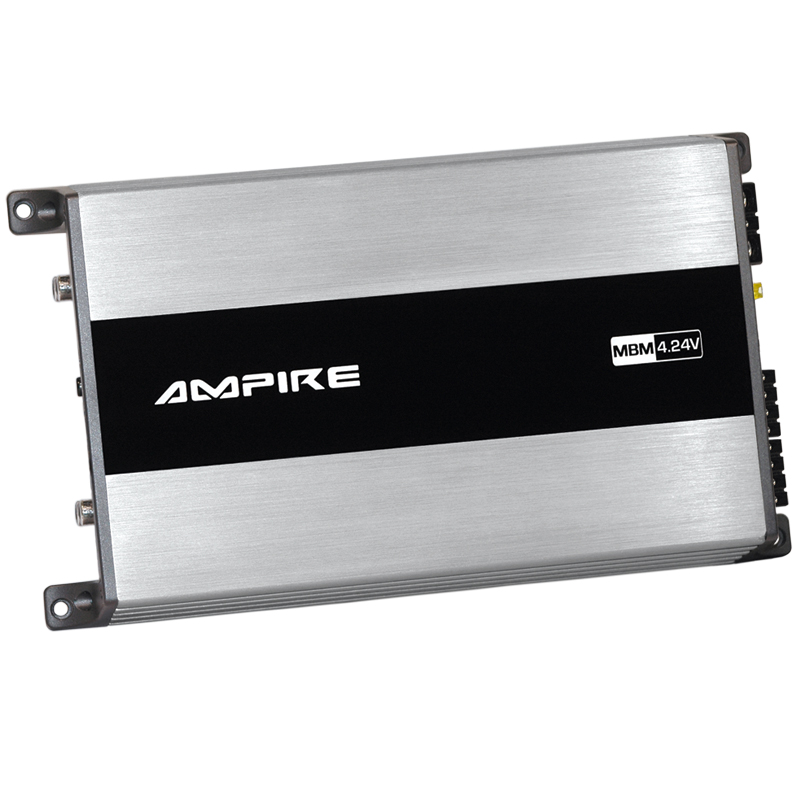

AMPIRE MBM 4.24V-2G

MBM4.24V- 4-Channel Digital Amplifier- Ultra-Compact Design- Cinch & balanced Speaker Inputs- 400 Watt RMS/800 Watt max.- 24 Volt Operating Voltage for Truck/Bus/RV- Illuminated AMPIRE Logo MBM4.24V - 4-Channel Digital Amplifier - Ultra-Compact Design - Cinch & balanced Speaker Inputs - 400 Watt RMS/800 Watt max. - 24 Volt Operating Voltage for Truck/Bus/RV - Illuminated AMPIRE Logo Specification: Power Supply Power supply voltage: 20 - 32 VDC Remote voltage: 8 - 28 VDC Idling current: 0,51A Idling current when off: 0,4mA Amplifier Stage Output power (RMS) @ 28,8V / 4 Ohm: 70 Watt x 4 Output power (RMS) @ 28,8V / 2 Ohm: 100 Watt x 4 Output power (RMS) @ 28,8V / 4 Ohm: 200 Watt x 2 (bridged) Output power (max.) @ 28,8V / 4 Ohm: 140 Watt x 4 Output power (max.) @ 28,8V / 2 Ohm: 200 Watt x 4 Output power (max.) @ 28,8V / 4 Ohm: 400 Watt x 2 (bridged) Distortion (THD): 0,5% S/N Ratio: 90dB Channel separation: 65dB Input sensitivity: 200mV - 6,0V Filters Low pass filter/slope: 50Hz - 250Hz / 12dB High pass filter/slope: 50Hz - 250Hz / 12dB Bass Boost/Frequency: 0 - 12dB @ 50Hz Subsonic Filter: 25Hz. Other Functions Fuse: 20A x 1 Max size (LxWxH): 251 x 141 x 50mm Weight: 1,85Kg Inputs: RCA x4, High Level x4 (High Level Auto Turn On) Special version for use in buses, trucks and recreational vehicles with 24 volt power supply..
