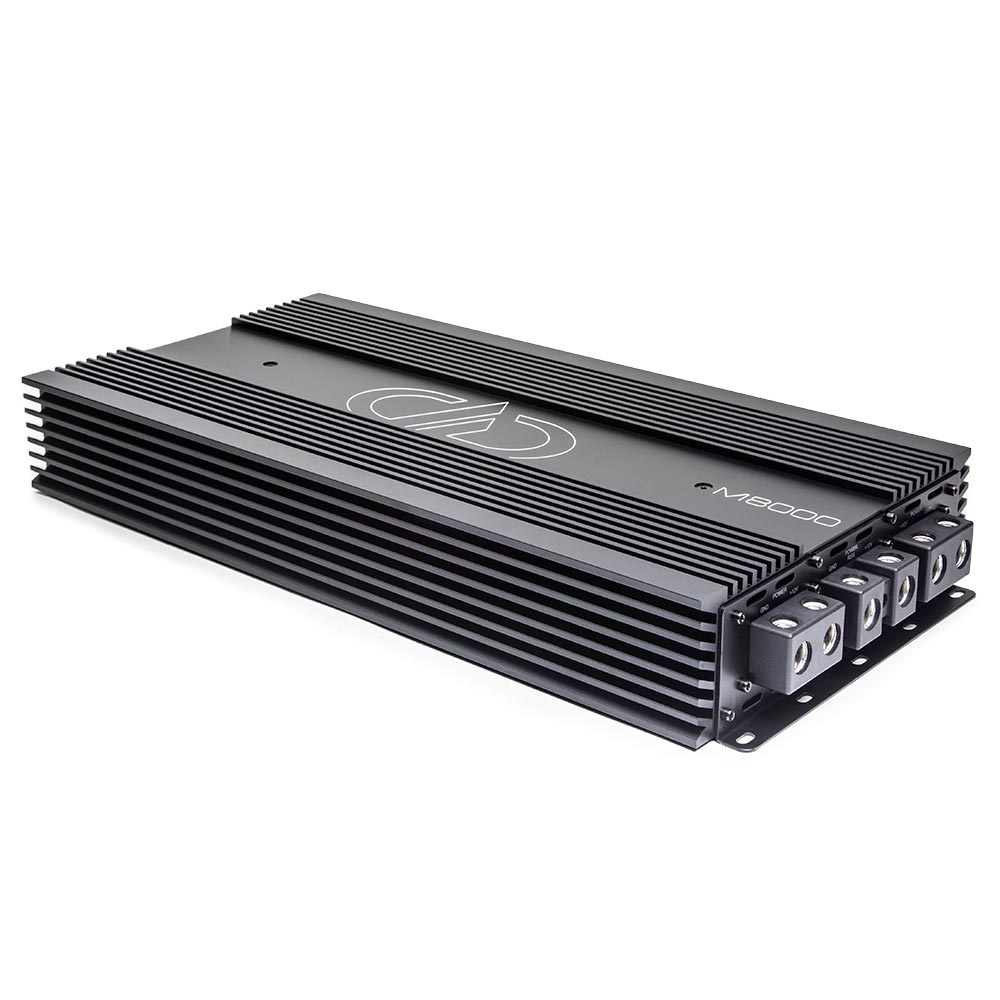

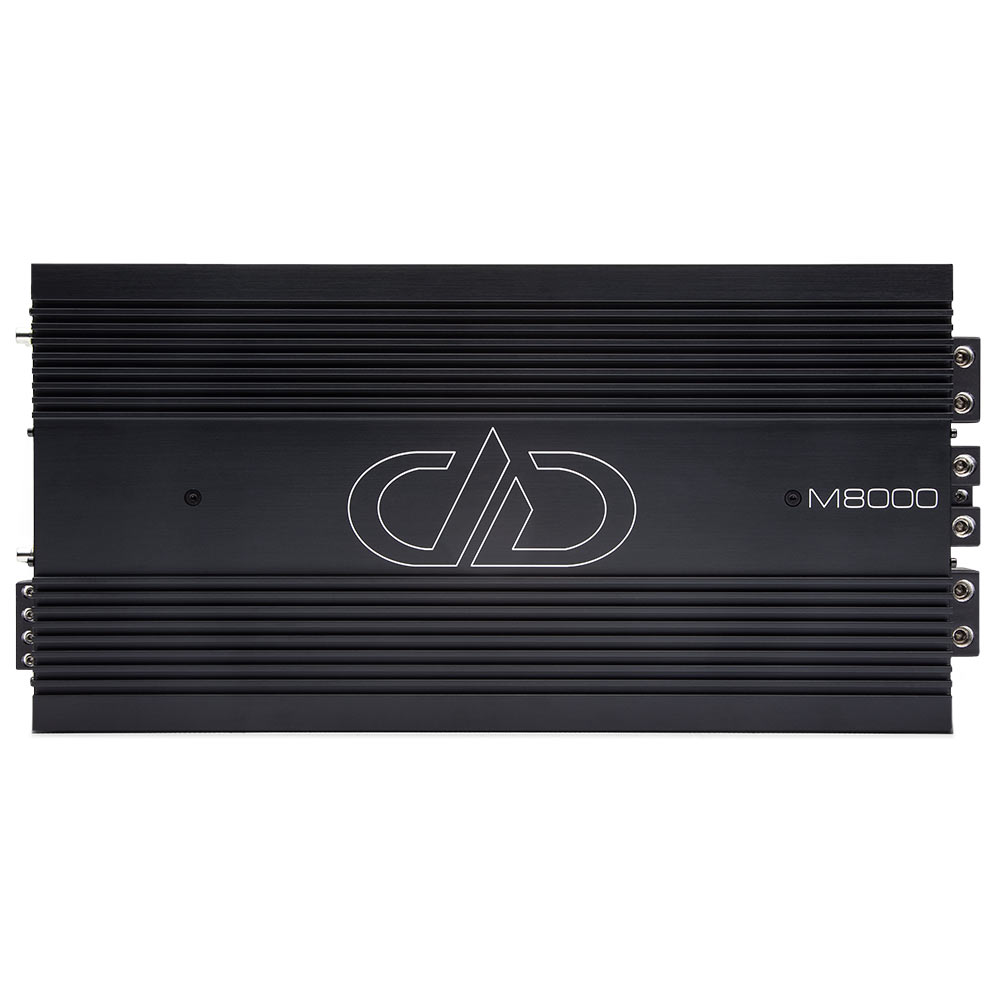

DD Audio M8000

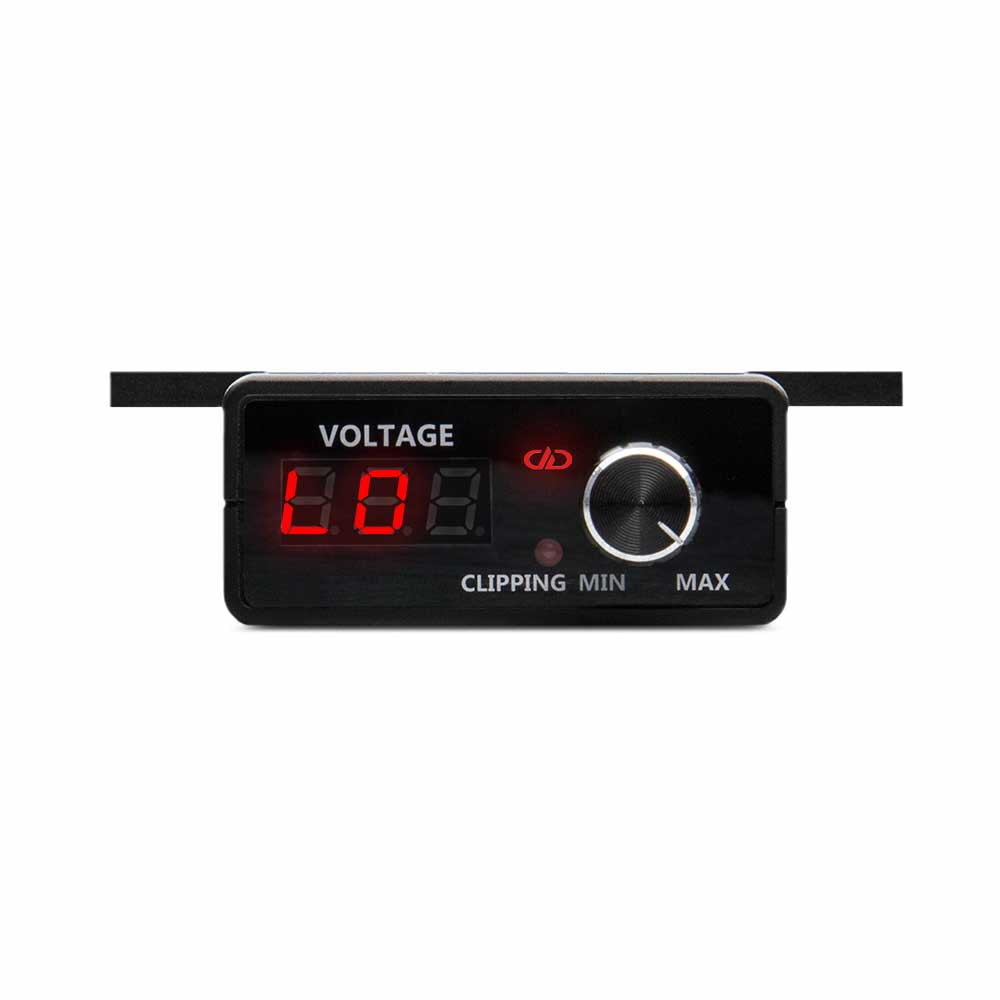

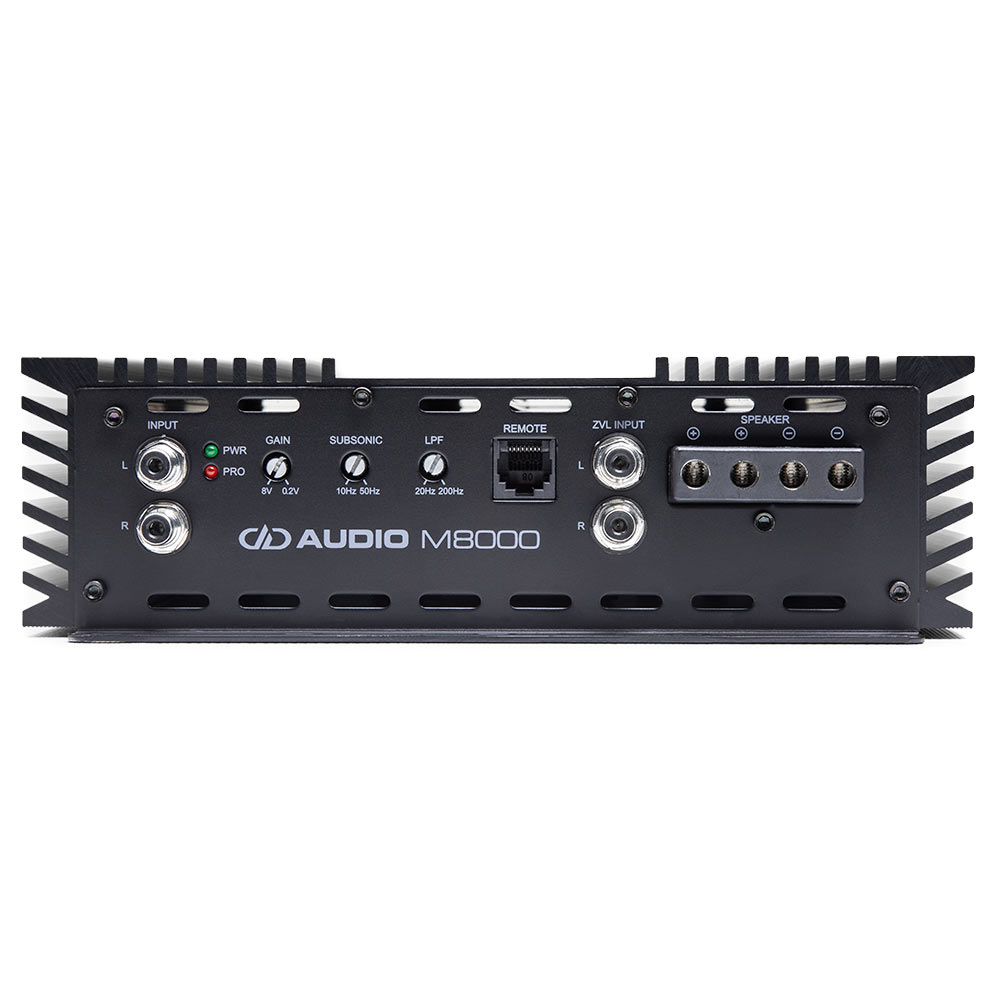

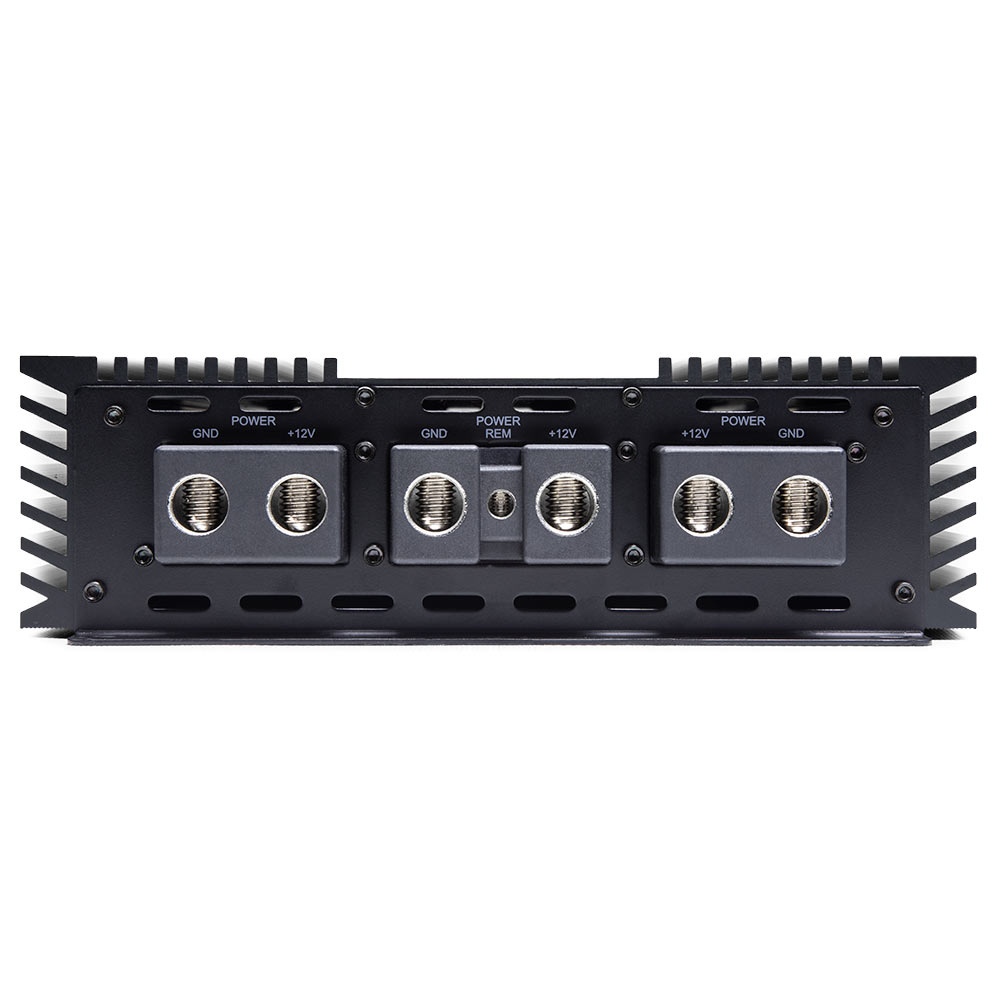

The next generation of the iconic M Series takes advantage of the latest semiconductor technology and combines it with state of the art amplifier design. This combination to offers power to footprint ratios previously impossible for current driven-half bridge amplifiers. Even though the chassis are more compact, the new M Series hasn’t lost any output power or stability. With robust heatsinks, multiple power and ground inputs, heavy duty PCBs, and top shelf internal components these amplifiers are ready to handle even the most demanding listening sessions. Features: Optimized High Current Power Supply ZVL Linking Module Input 24dB/Oct Bandpass Filters Custom Vanity Plate Ready Remote / LCD Voltage Display and Clipping Indicator Operating Voltage:9 - 16 Test Voltage:14.4 Output Channel(s):1 Continuous Wattage @4ohm:3000 Continuous Wattage @2ohm:5000 Continuous Wattage @1ohm:8000 Dynamic Wattage:10500 Max Current Draw (Amps):800 RCA Input Voltage Sensitivity:8 - 0.2 RCA Input S/N: 92dB Damping Factor: 400 THD: 0.2% Frequency Response (Hz):10 - 200Hz Sub-Sonic Filter:10 - 50Hz Low-Pass Filter:20 - 200Hz ZVL Input:Yes Pass Thru Output:No Remote Control:Remote Included in Box Power Wire Gauge:3 x 0 Speaker Wire Gauge:10 Dimensions (Inches):17.75 x 9 x 2.6 Dimensions (MM):450 x 230 x 66.
