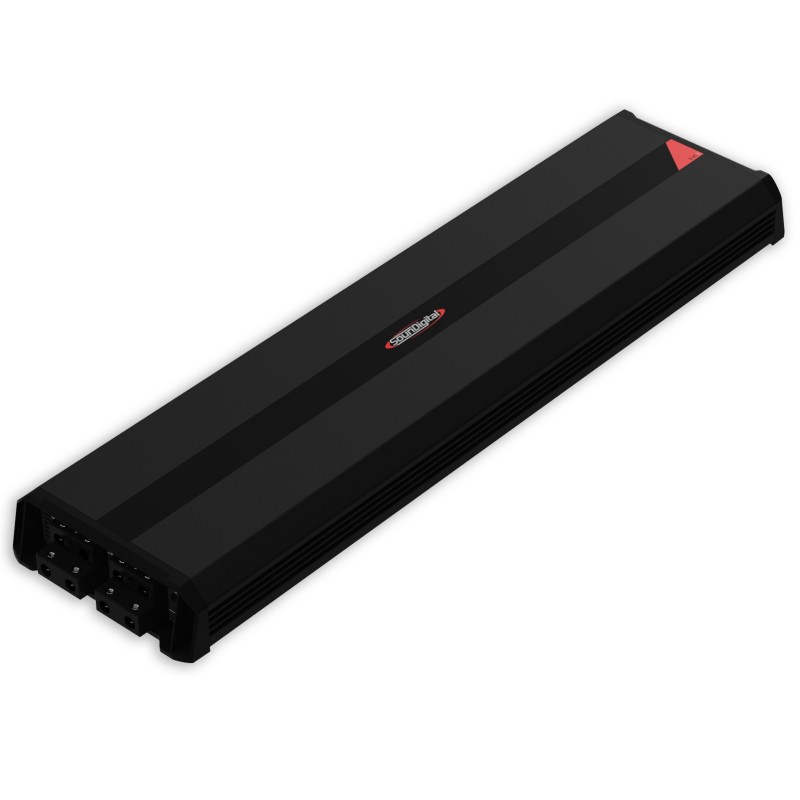

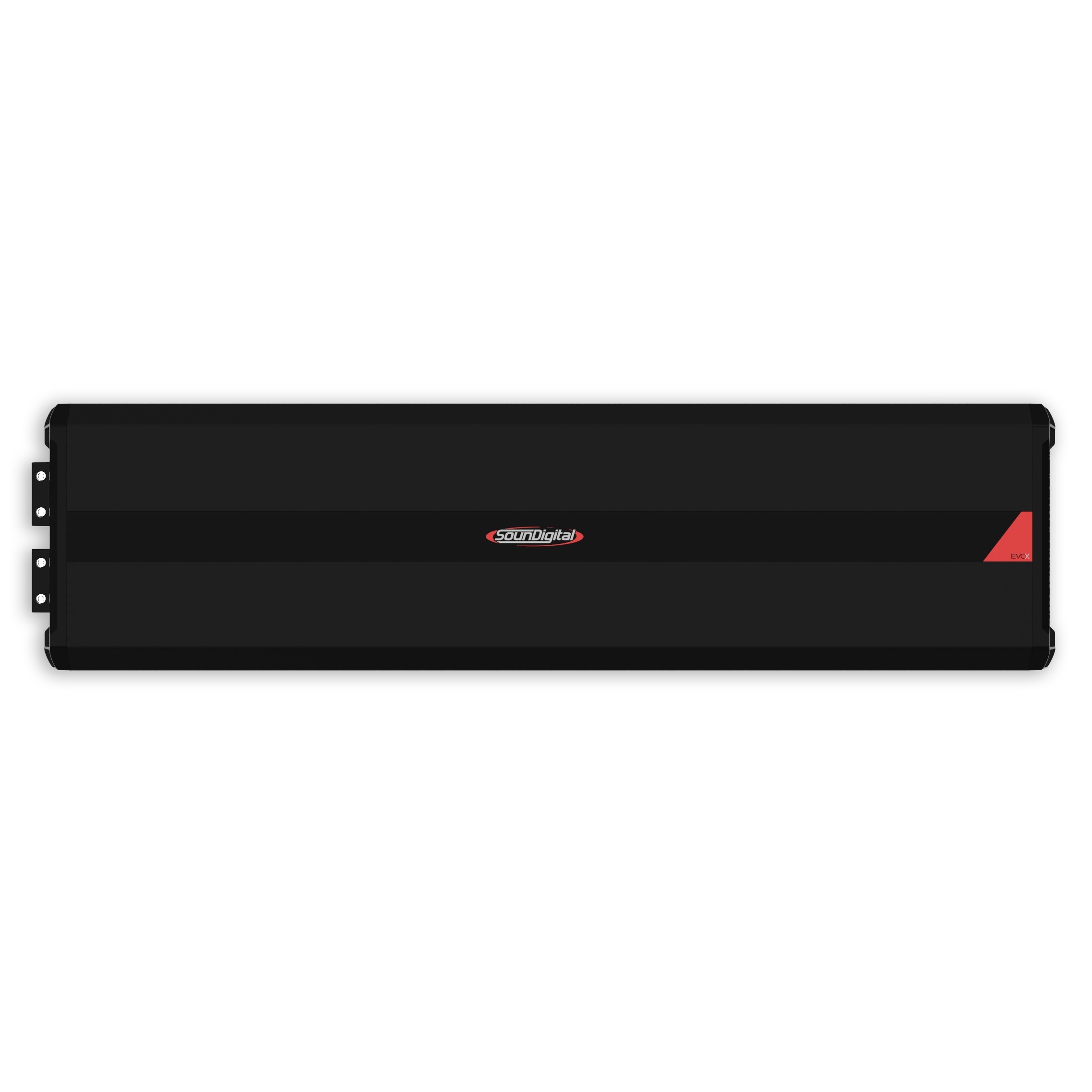

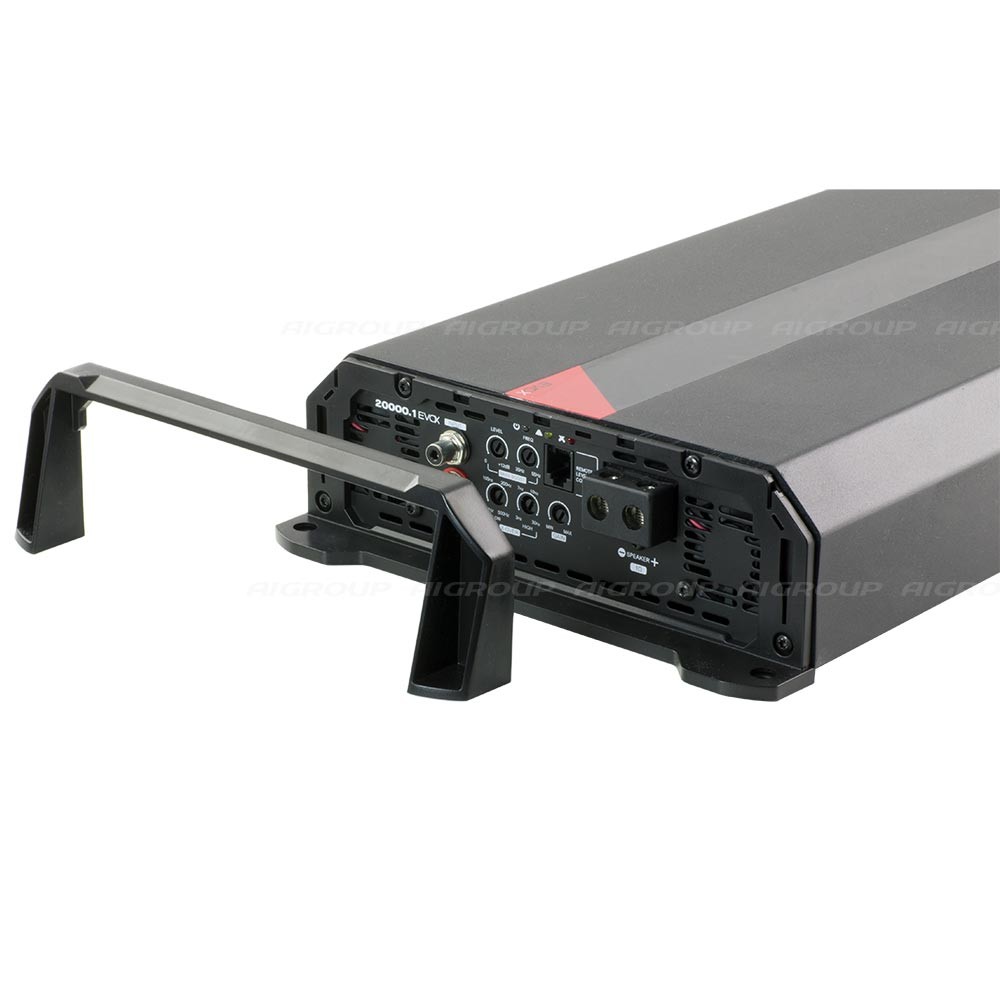

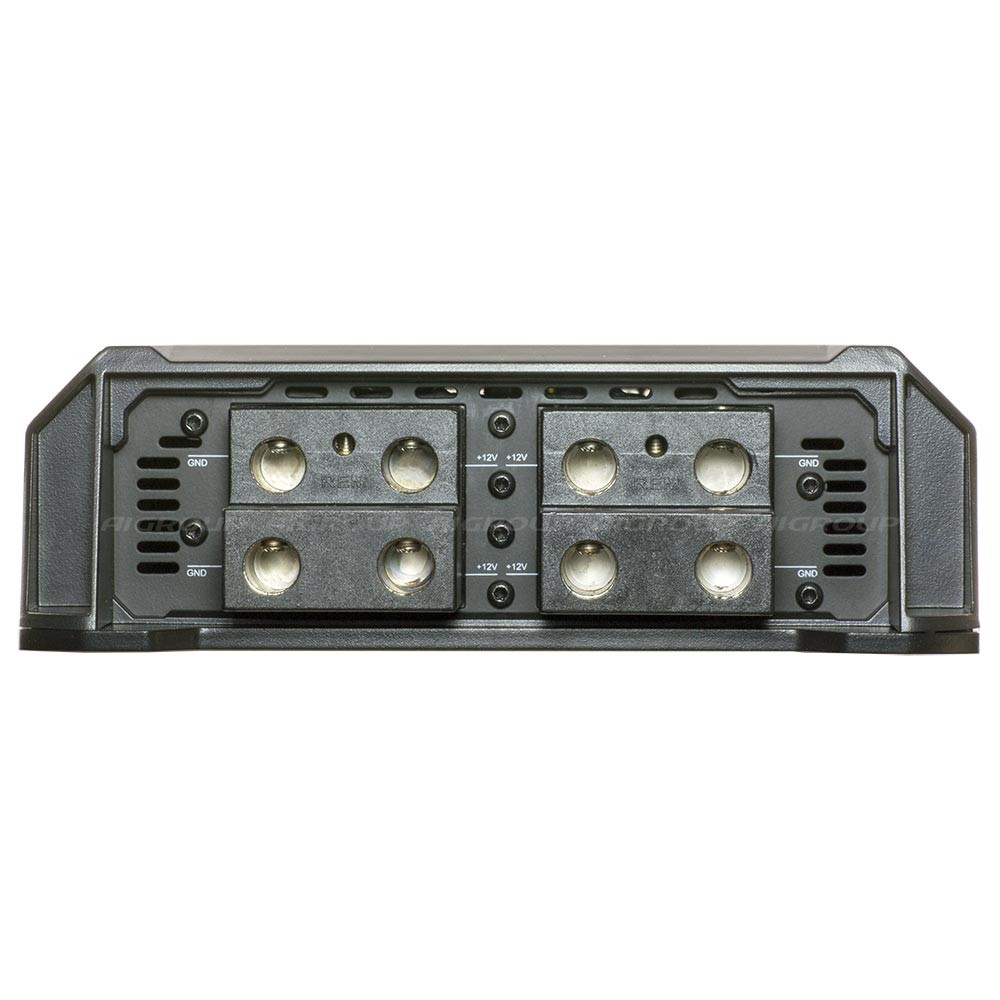

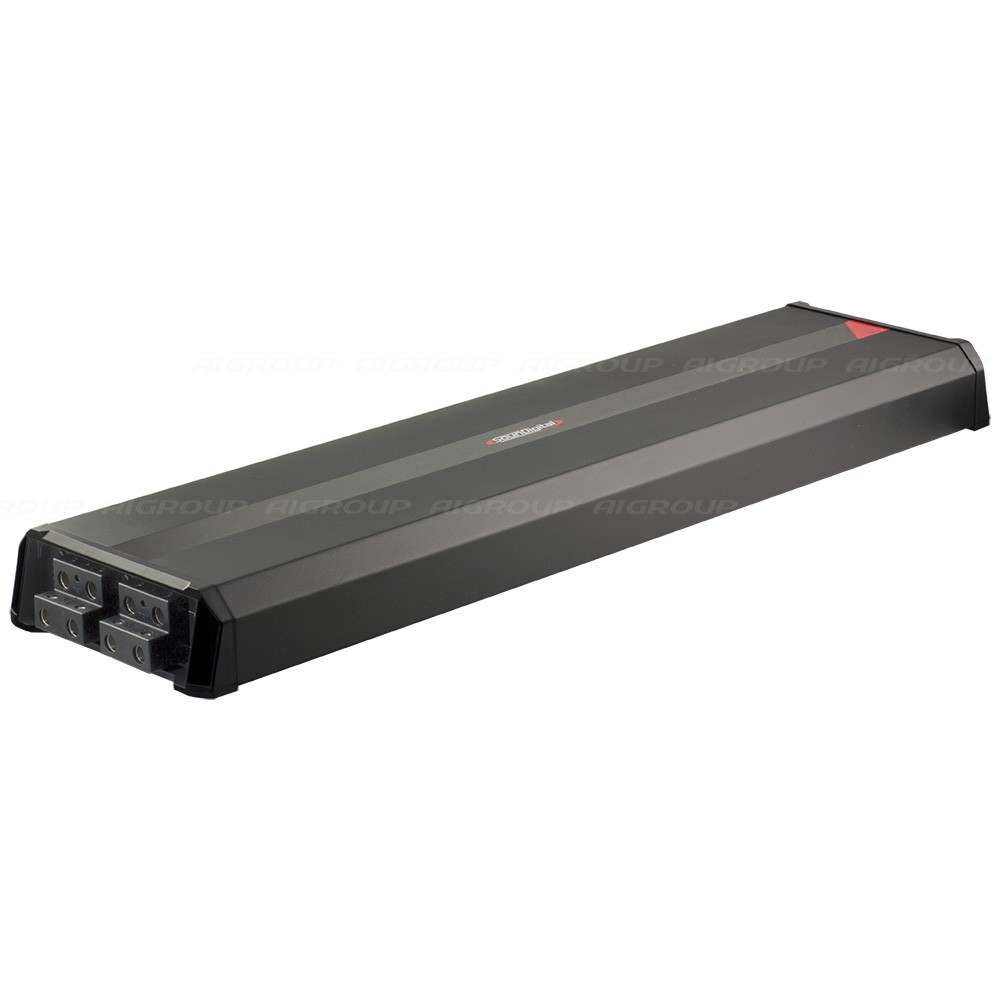

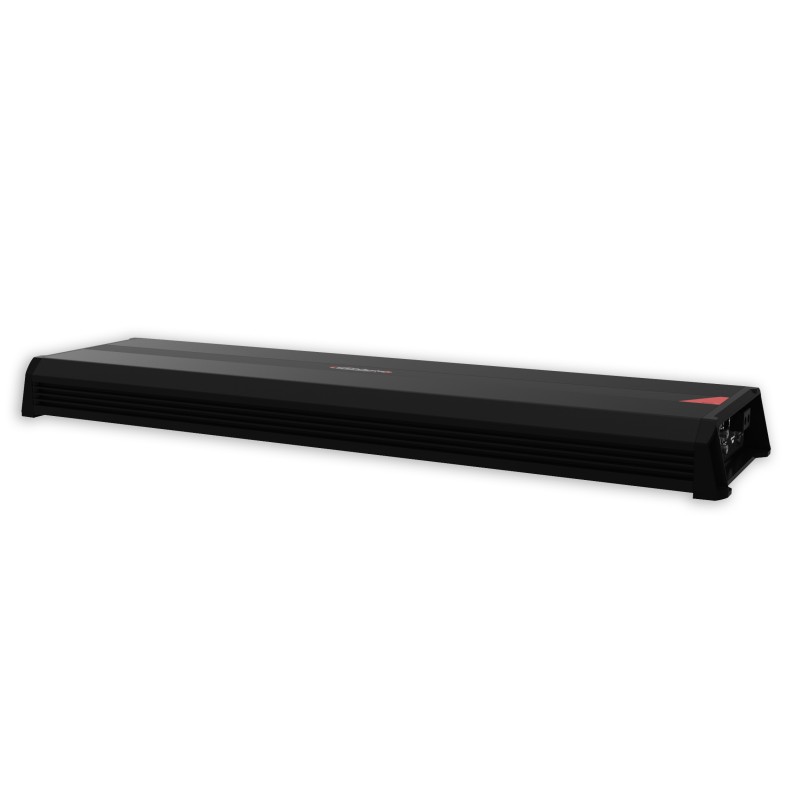

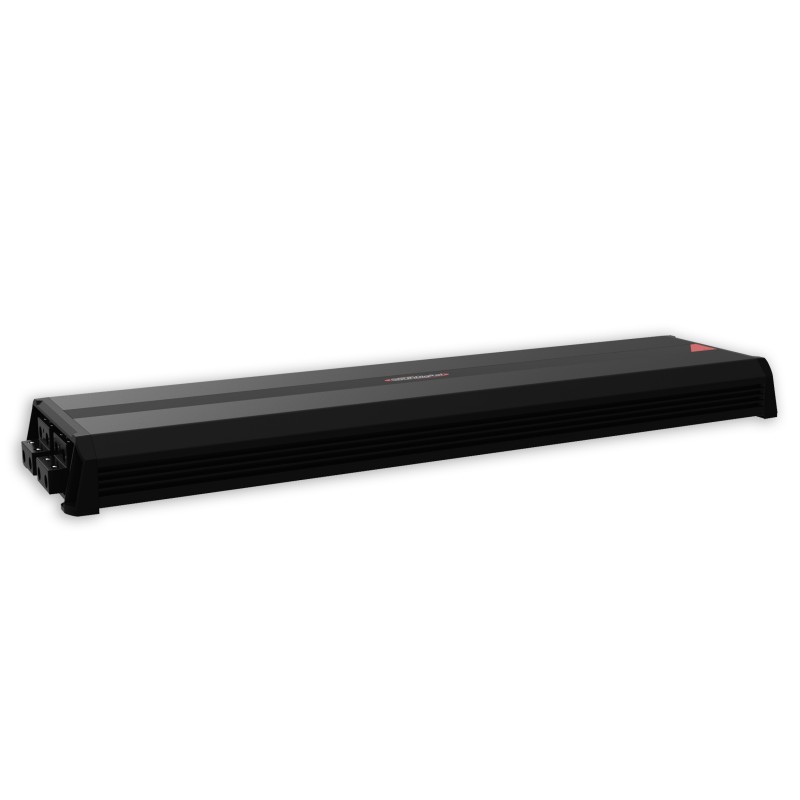

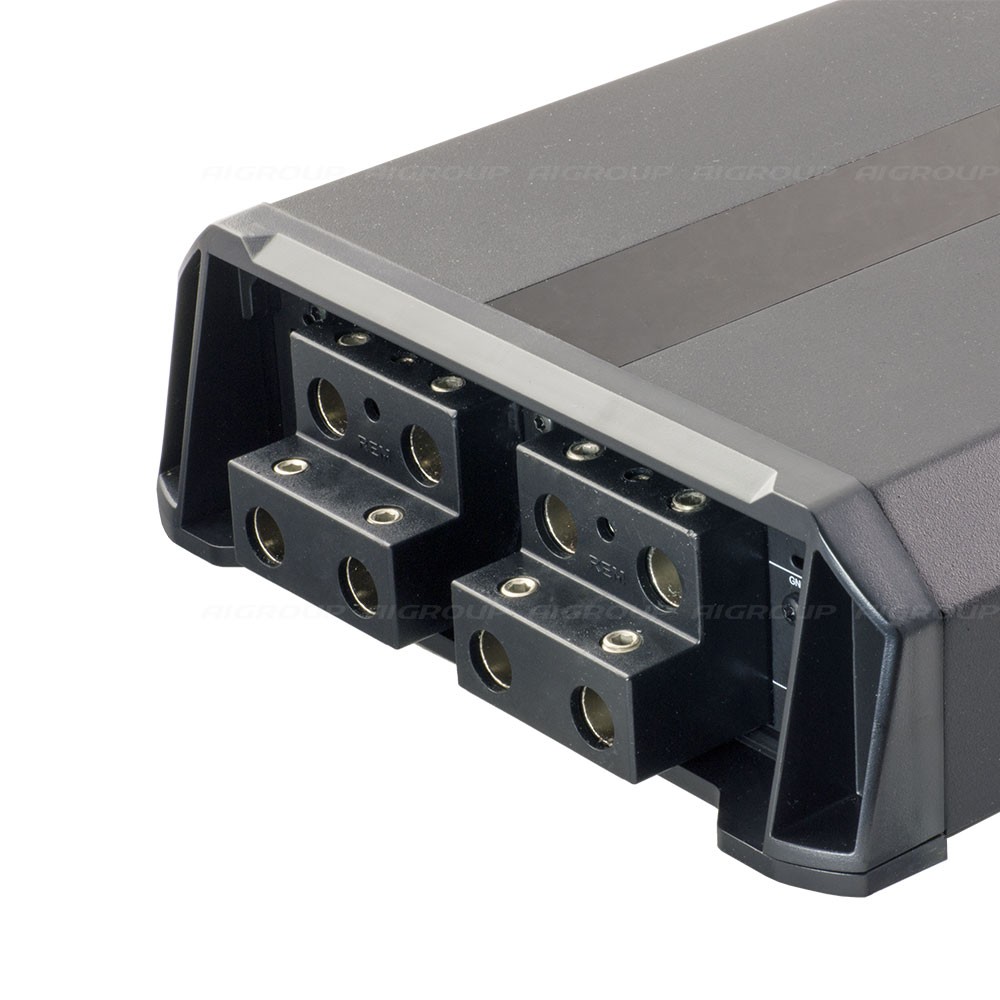

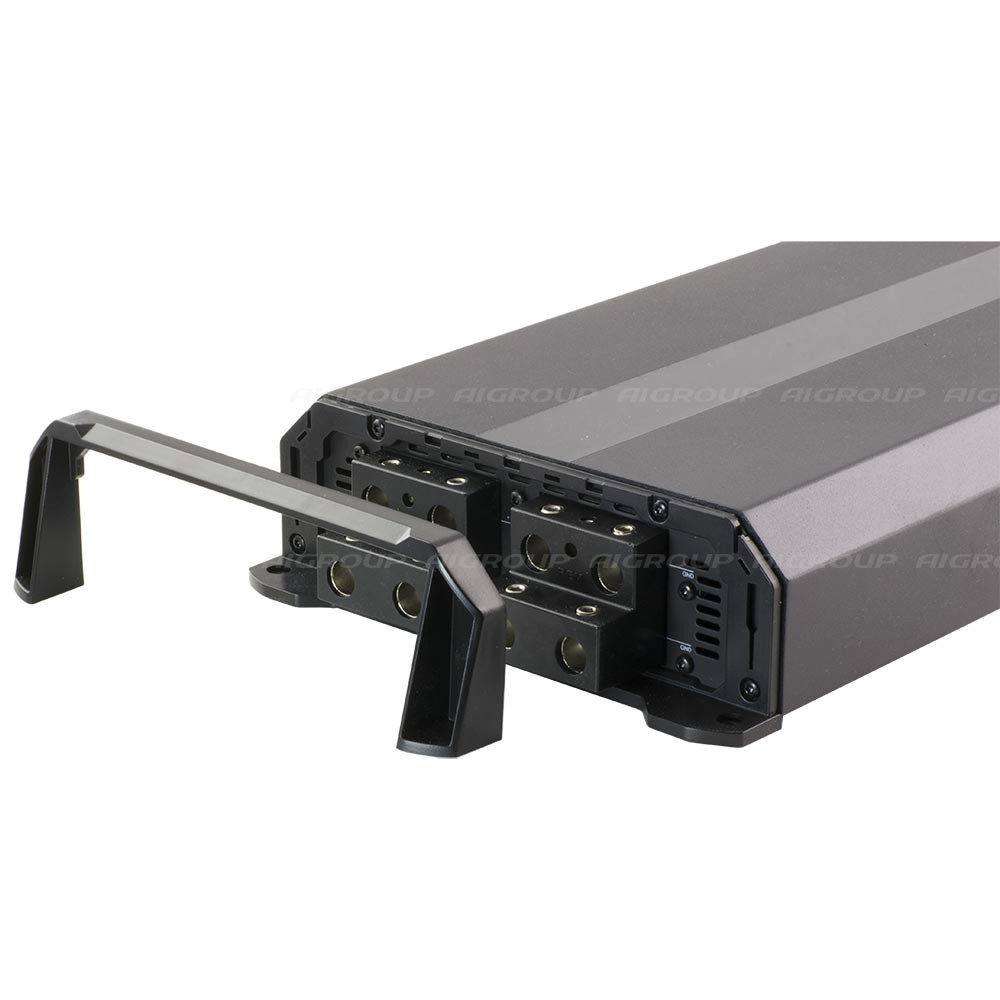

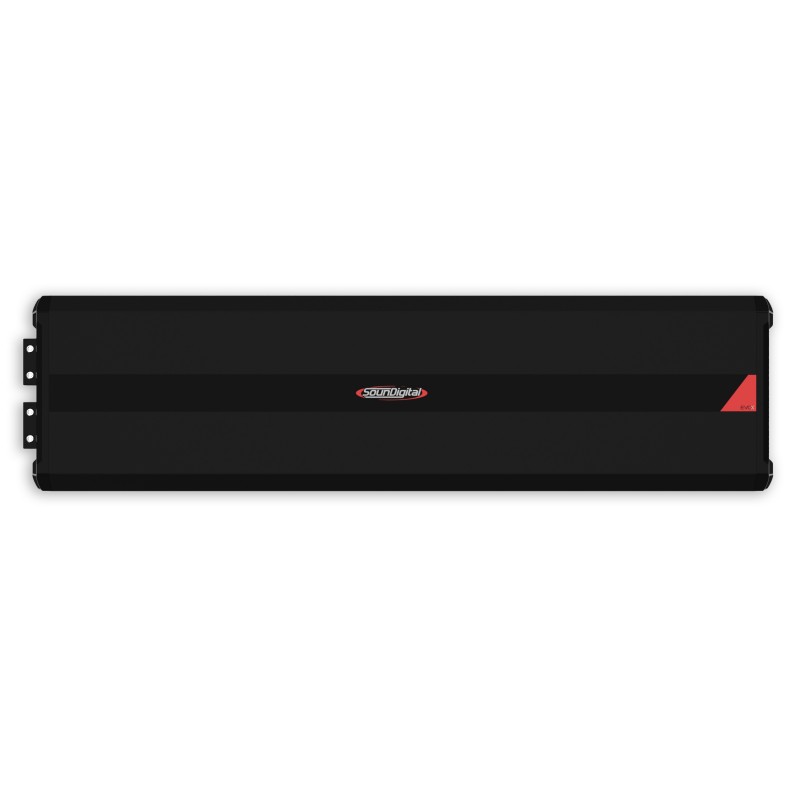

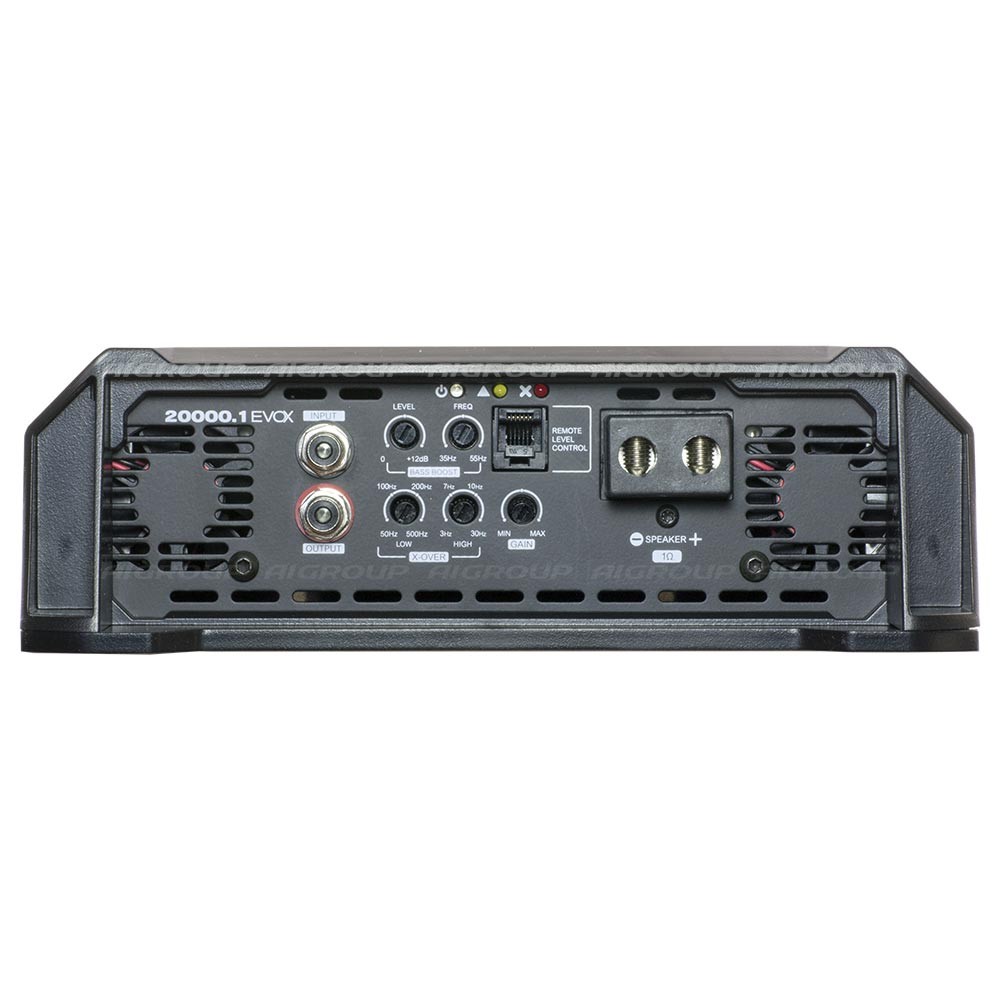

SounDigital 20000.1 EVOX - 1ohm

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system.The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability. Compatible with SD-RLC Remote level control. Power @ 12.6V @ 4Ω: 1 X 8712 WRMS Power @ 12.6V @ 2Ω: 1 X 13200 WRMS Power @ 12.6V @ 1Ω: 1 X 20000 WRMS Power @ 14.4V @ 4Ω: 1 X 9714 WRMS Power @ 14.4V @ 2Ω: 1 X 14718 WRMS Power @ 14.4V @ 1Ω: 1 X 22300 WRMS Operating Voltage: 8V – 16V Current Draw (Music): 980 A Current Draw (Max): 1960 A Recommended Fuse (Music): 1200 A Total Efficiency: 81% Damping Factor: 200 Frequency Response (-3dB): 5Hz – 500Hz SNR: 76dB Crossover HPF: 5Hz – 30Hz Crossover LPF: 50Hz – 500Hz THD + N (10% Rated Power): 0.2% Product Dimensions: 34 x 8.8 x 2.8 in Älä kytke vahvistinta alle nimelliskuorman! Do not run your amp under rated impedance!.
