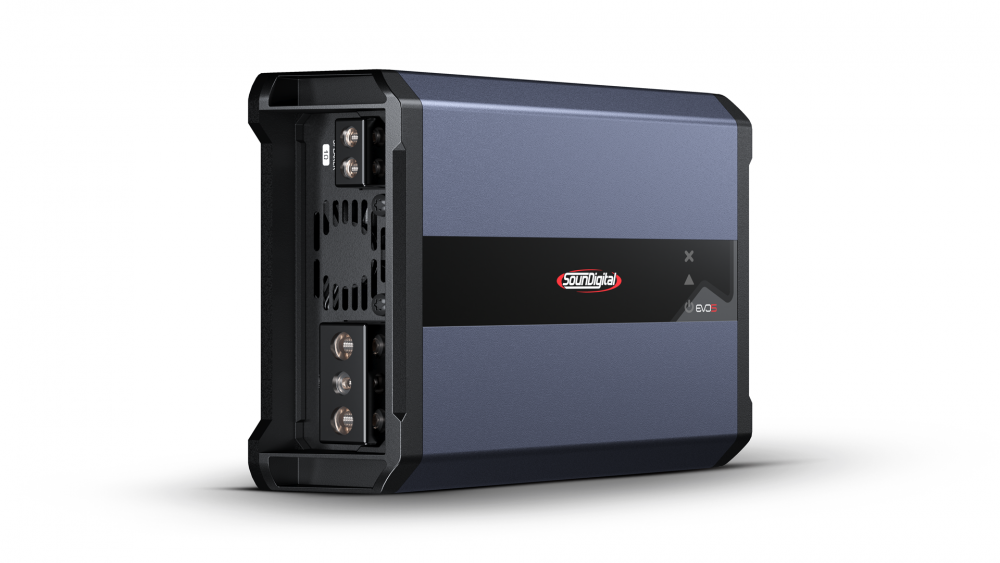

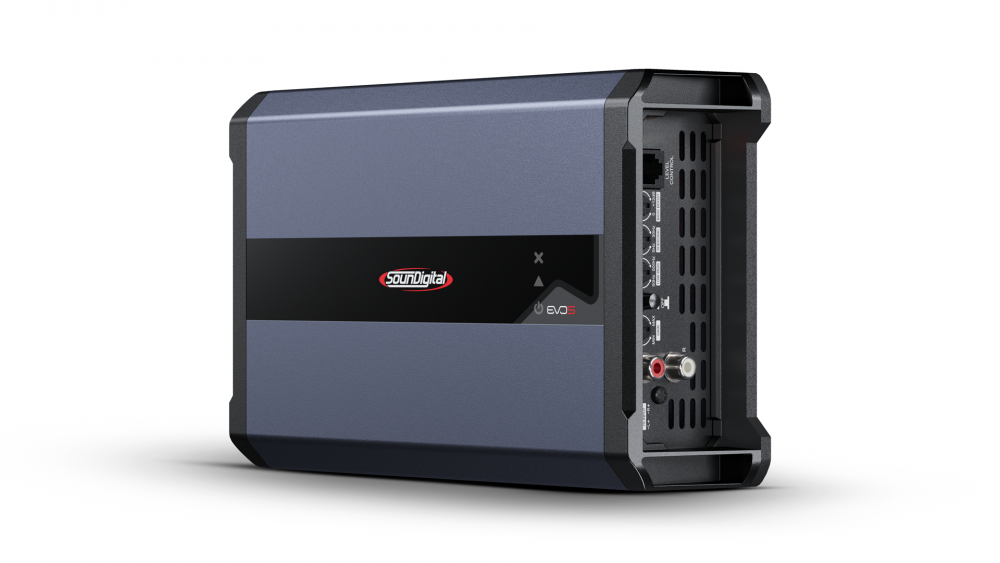

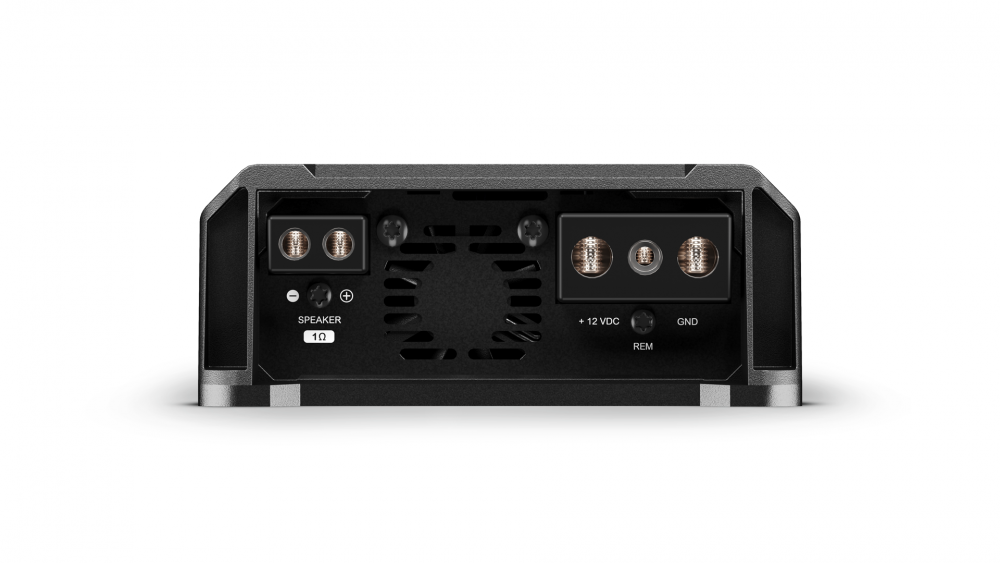

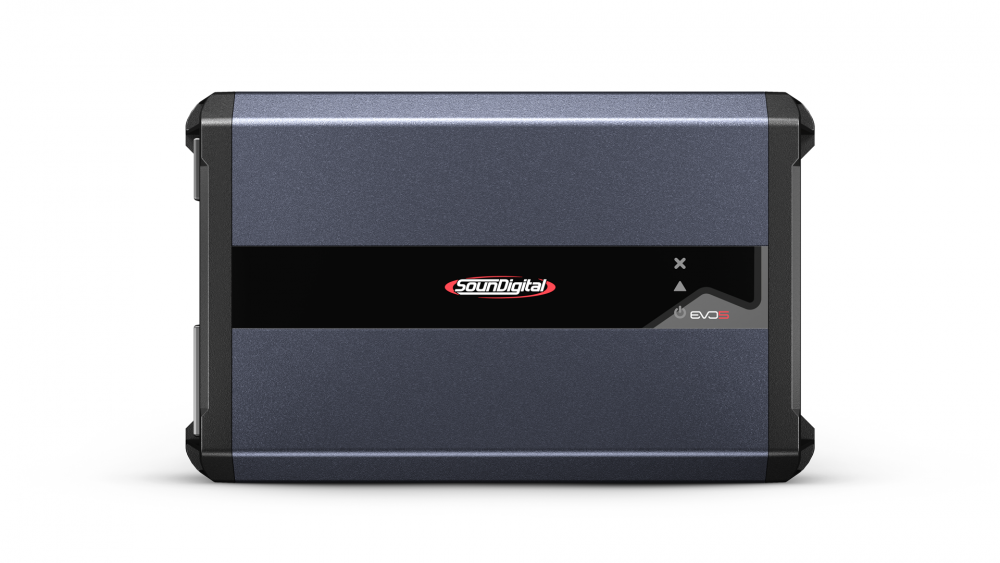

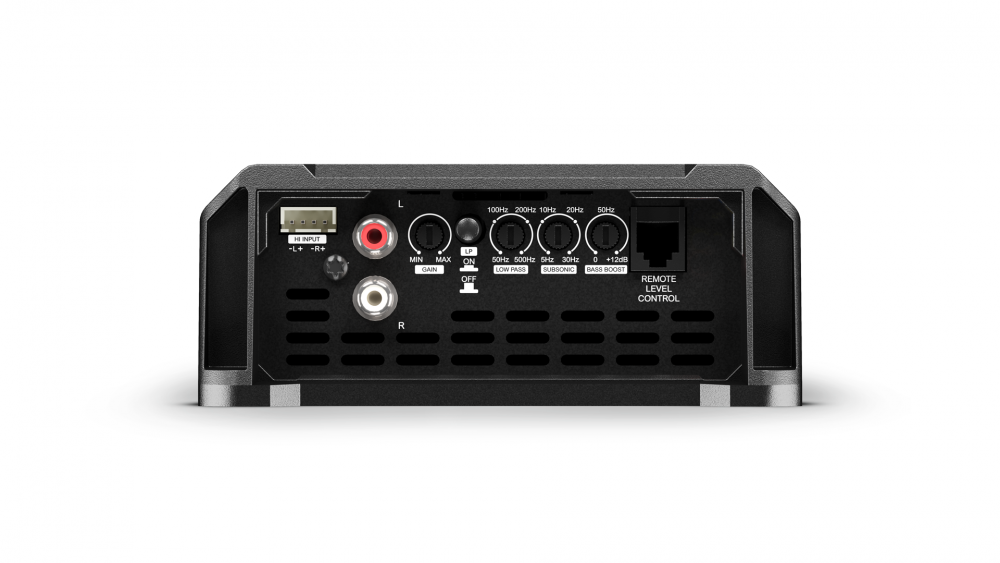

SounDigital 3000.1 EVO 5 - 1 Ohm

The 3000.1EVO 5 is a compact, modern amplifier that delivers 3000W RMS of power distributed over 1 channel.The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects.

Power @ 1Ω: 1 X 3000W RMS
Power @ 2Ω: 1 X 1980W RMS
Power @ 4Ω: 1 X 1307W RMS

Frequency Response (-3dB):

5Hz ~ 25kHz

Low Pass Filter:

50Hz ~ 500Hz

subsonic:

5Hz ~ 30Hz

Bass Boost:

0dB ~ 12dB @ 50Hz

Operating Voltage:

8V – 16V

SNR:

92dB

Input Sensitivity:

0.2V ~ 2V

Current Draw (Music):

1Ω: 149A
2Ω: 139A
4Ω: 140A

Current Draw With Resistive Load:

1Ω: 298A
2Ω: 277A
4Ω: 280A

Total Efficiency:

1Ω: 80%
2Ω: 86%
4Ω: 85%

Damping Factor:

2000

Power Cable:

35mm² (2AWG)

Audio Output Cable:

1Ω: 2 x 4.0 mm² (11 AWG)
2Ω: 2 x 2.5 mm² (13 AWG)
4Ω: 2 x 1.5 mm² (15 AWG)

Recommended Fuse (Music):

150A

Recommended Battery:

150Ah

Width:

5.3 in / 13.6 cm

Length:

8.9 in / 22.8 cm

Height:

2.1 in / 5.48 cm

Weight:

1.75 Kg.
