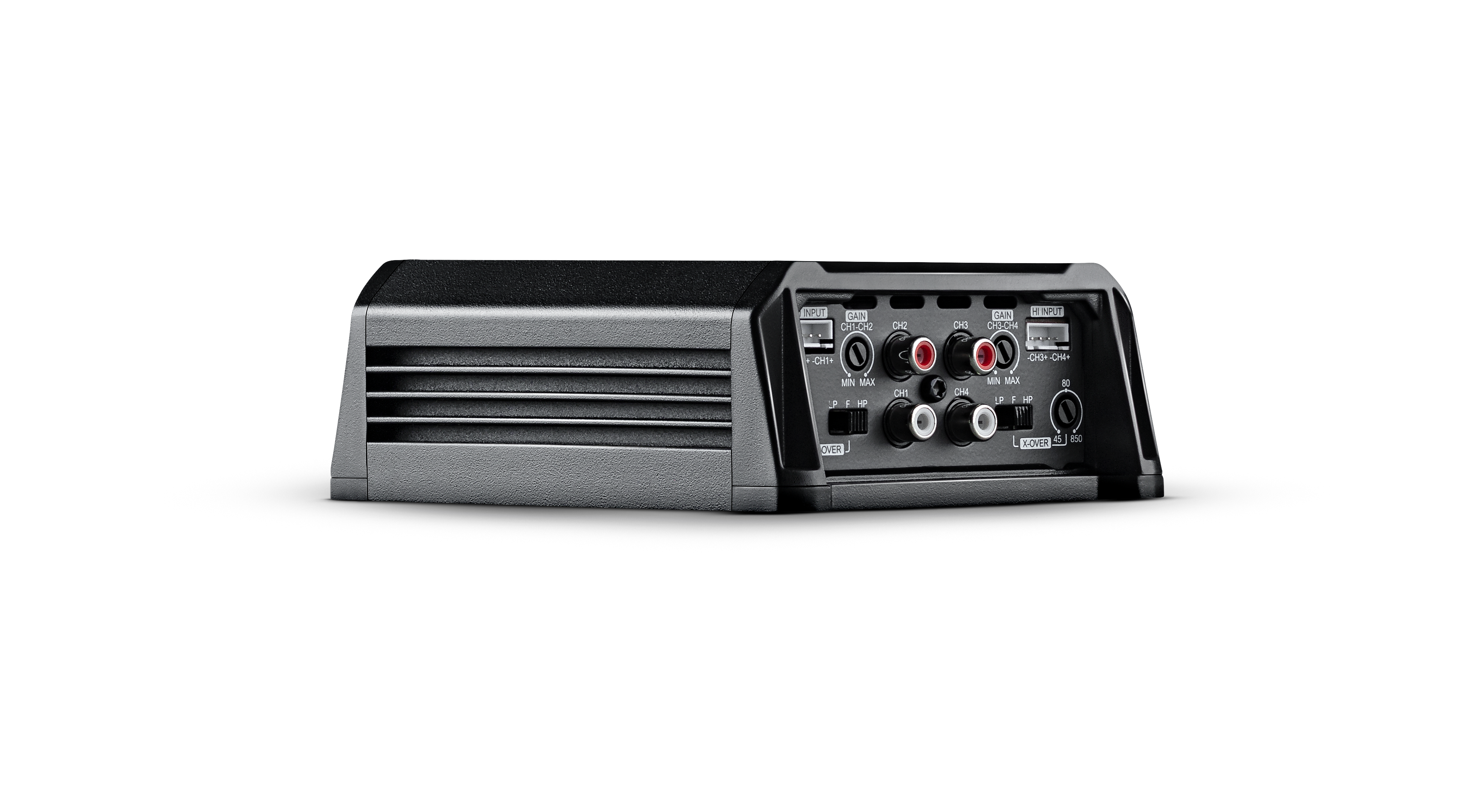

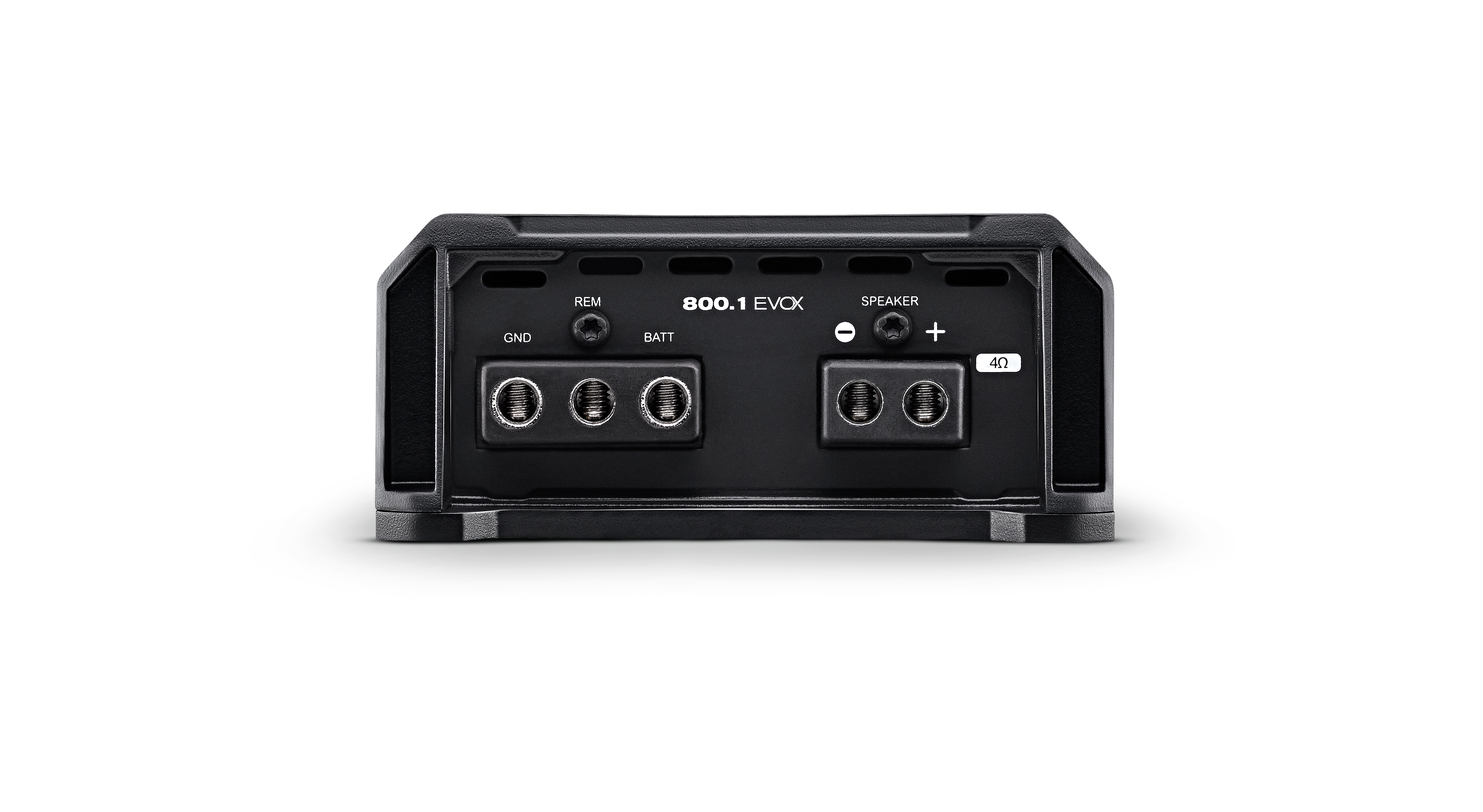

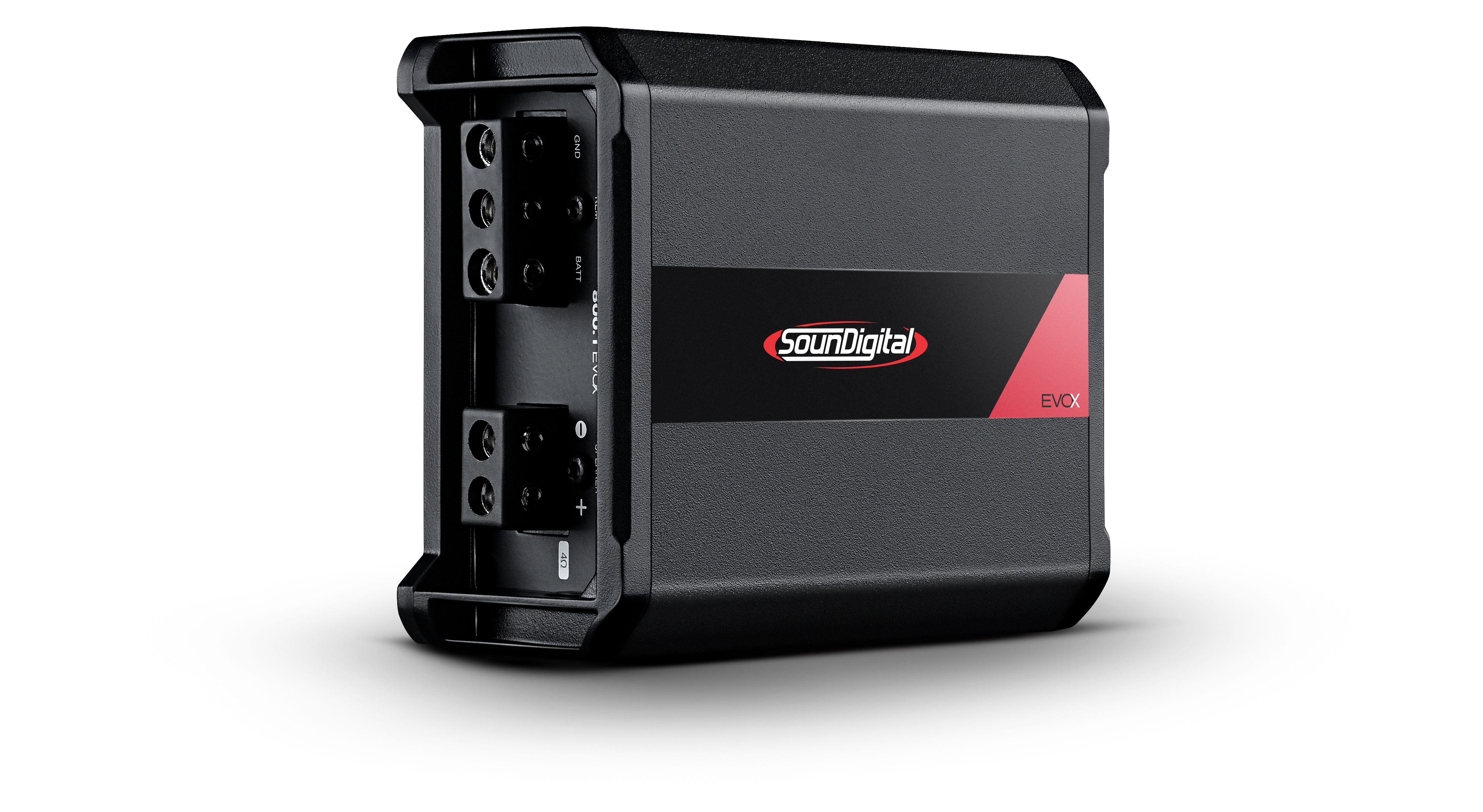

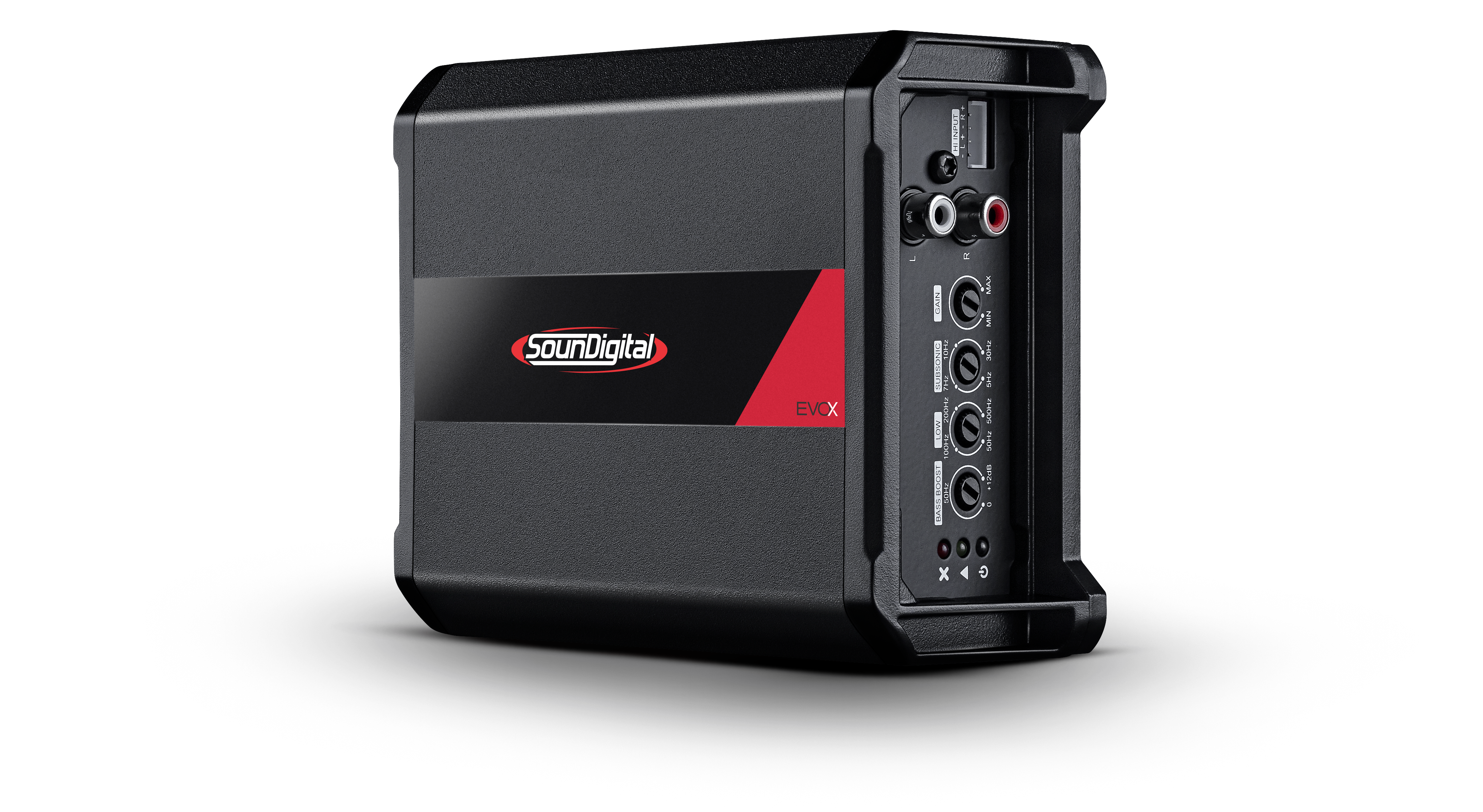

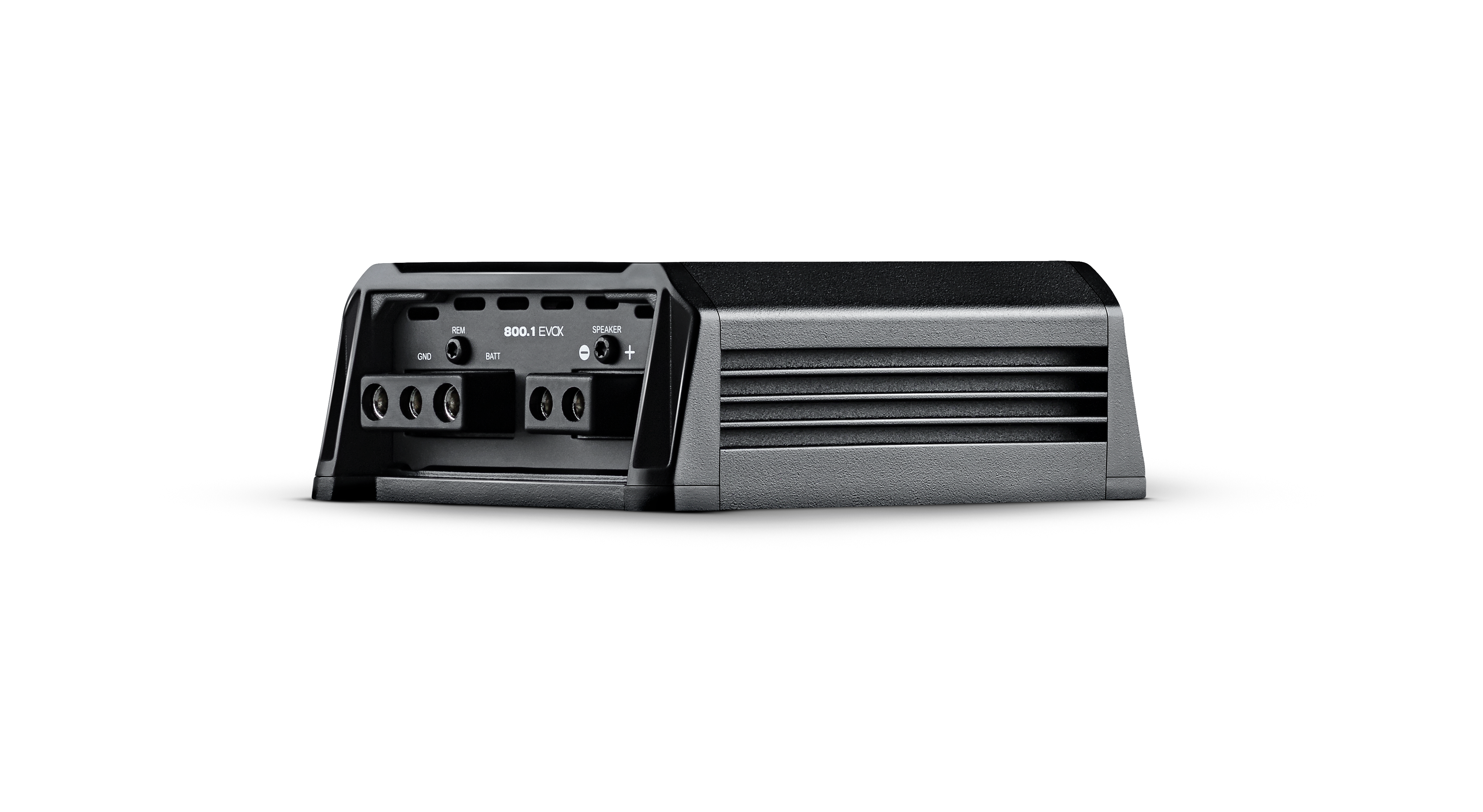

SounDigital 800.1 EVOX 4 Ohm

The EVO X Line brings the latest technology in a compact design with the highest quality components. From a pioneering technology, SounDigital brought to car audio amplifiers something that had not been explored yet. The thermal coupling through RTGP system. The exclusive RTGP system (Thermal Recovery for power generation) assures SounDigital products both greater thermal efficiency and robustness with higher stability. Power @ 12.6V @ 4Ω: 1 X 800 WRMS Power @ 12.6V @ 2Ω: N/A Power @ 12.6V @ 1Ω: N/A Power @ 14.4V @ 4Ω: 1 X 892 WRMS Power @ 14.4V @ 2Ω: N/A Power @ 14.4V @ 1Ω: N/A Operating Voltage: 8V – 16V Current Draw (Music): 38 A Current Draw (Max): 74 A Recommended Fuse (Music): 40 A Total Efficiency: 80% Damping Factor: 200 Frequency Response (-3dB): 5Hz – 500 Hz SNR: 90dB Crossover HPF: 5Hz – 30Hz Crossover LPF: 50Hz – 500Hz THD + N (10% Rated Power): 0.1% Product Dimensions: 5.8 x 4.4 x 2.0 in Product Dimensions: 14.8 x 11.3 x 5.1 cm Älä kytke vahvistinta alle nimelliskuorman! Do not run your amp under rated impedance!.
