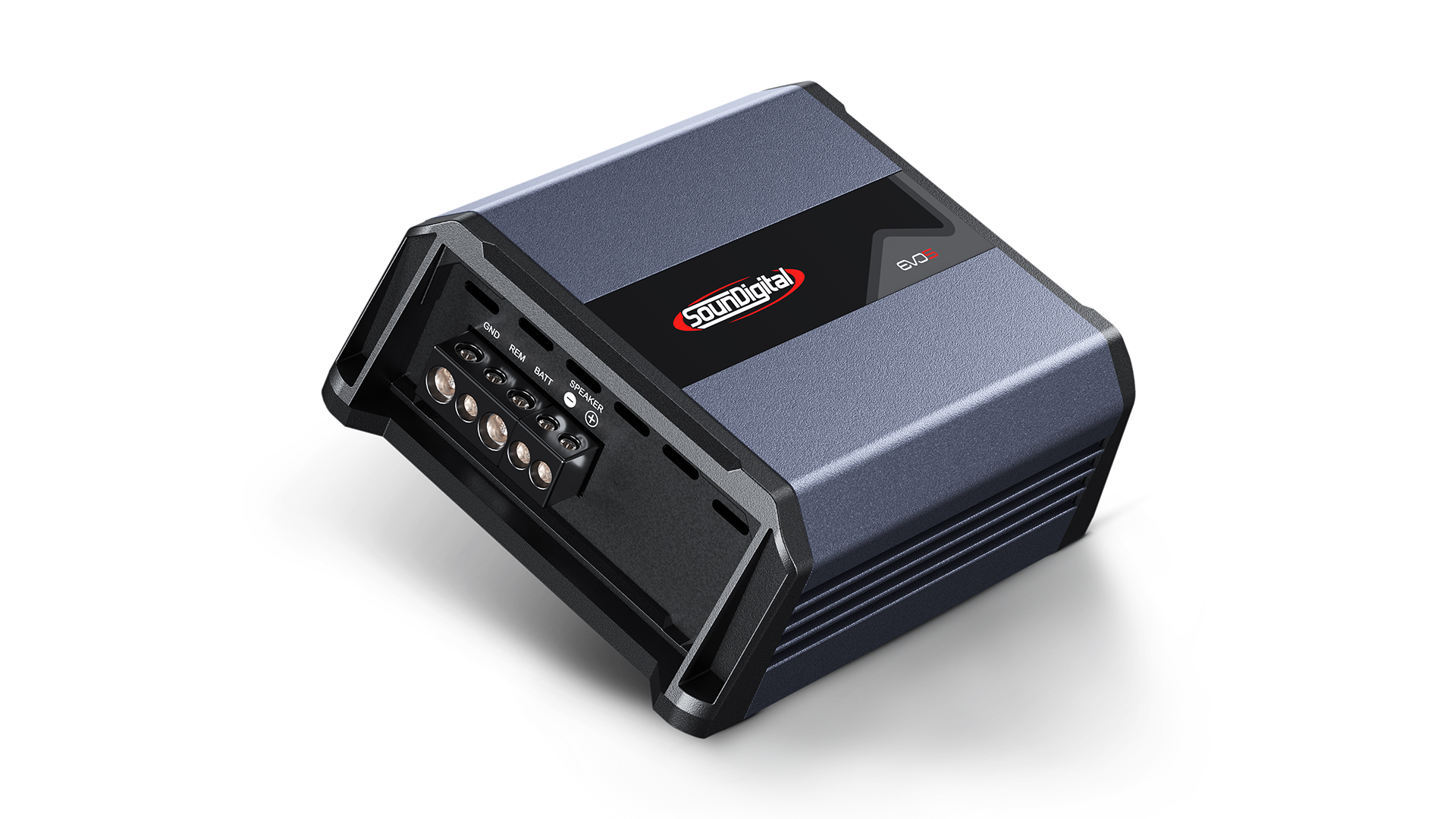

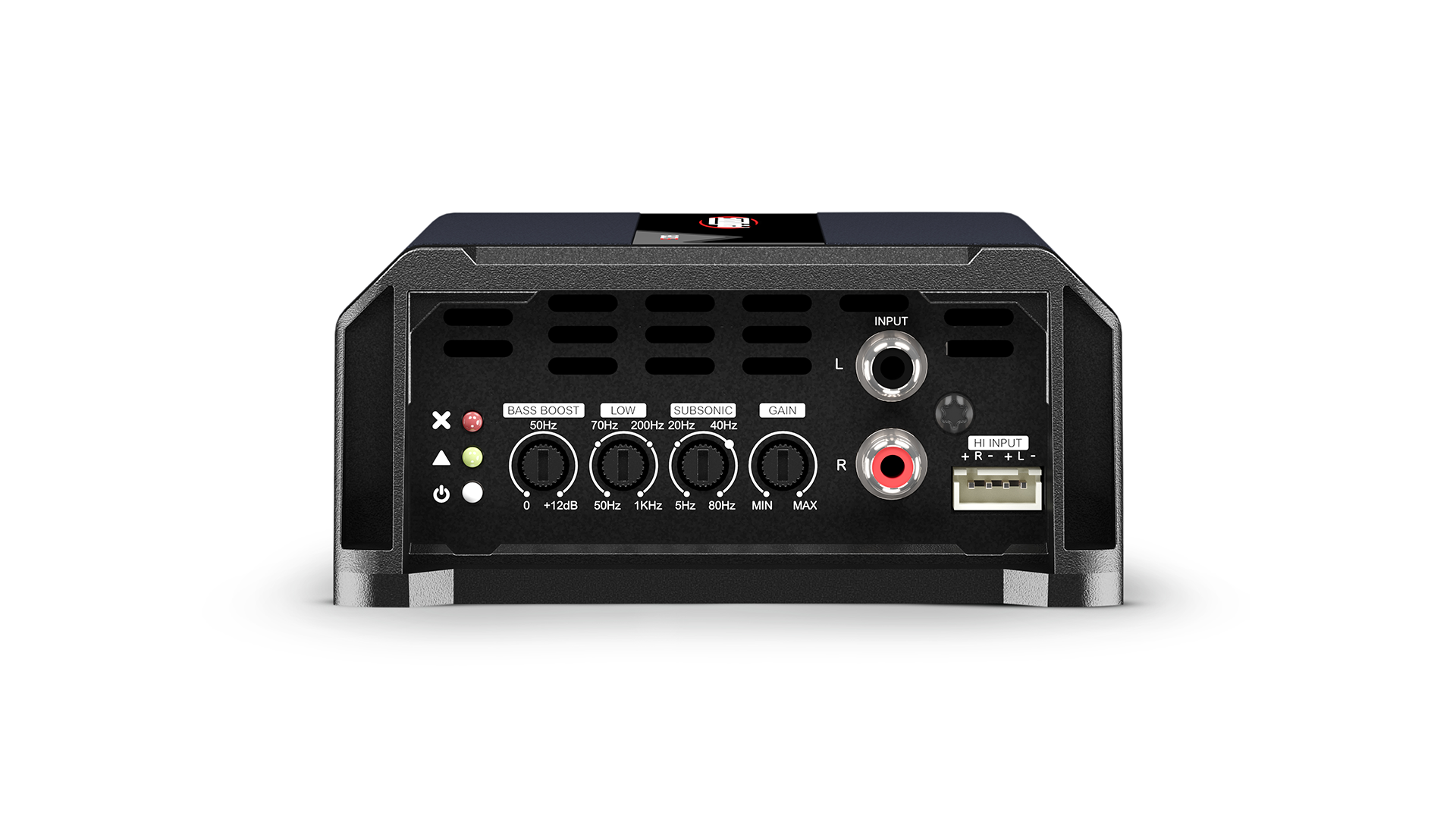

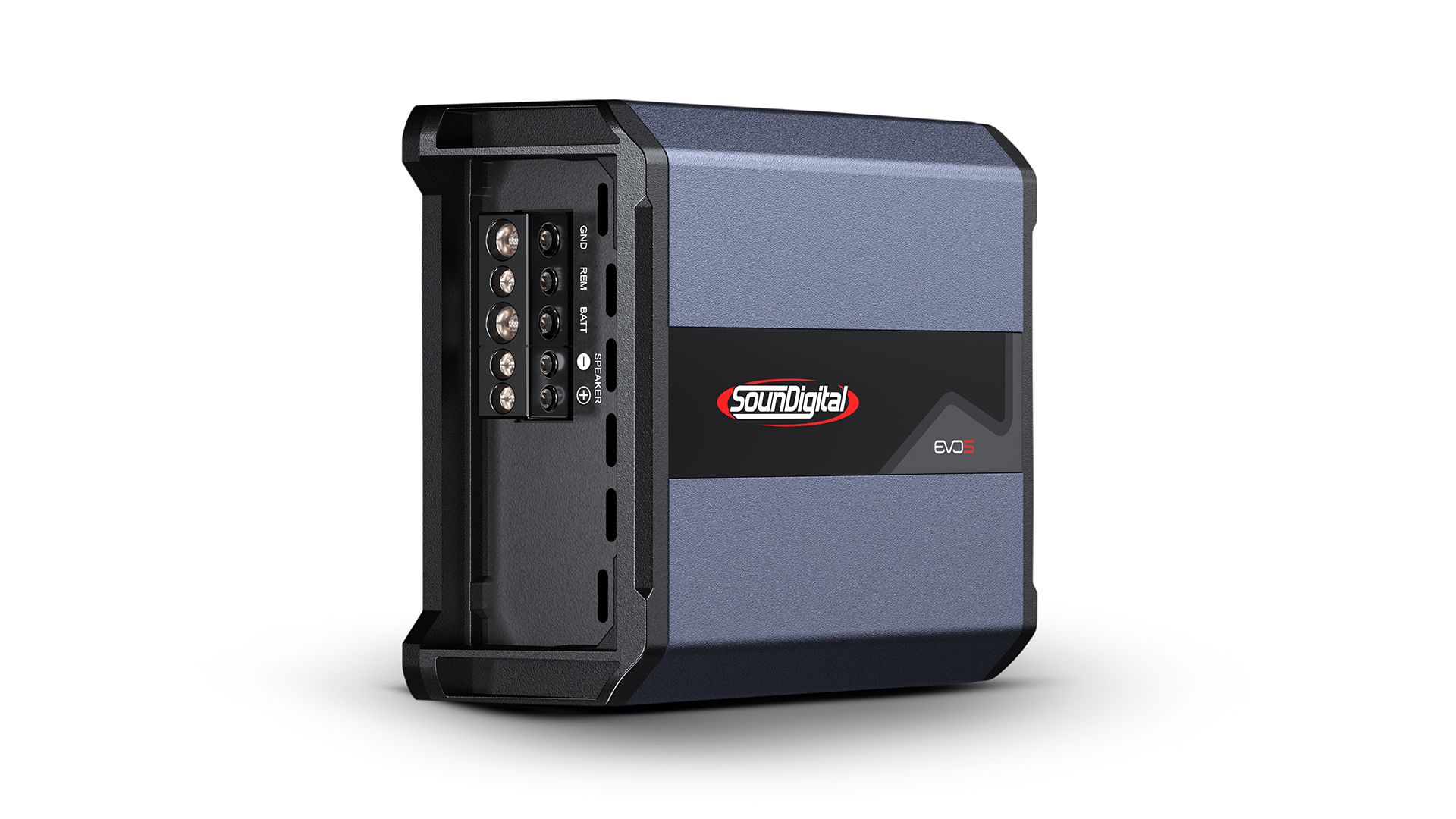

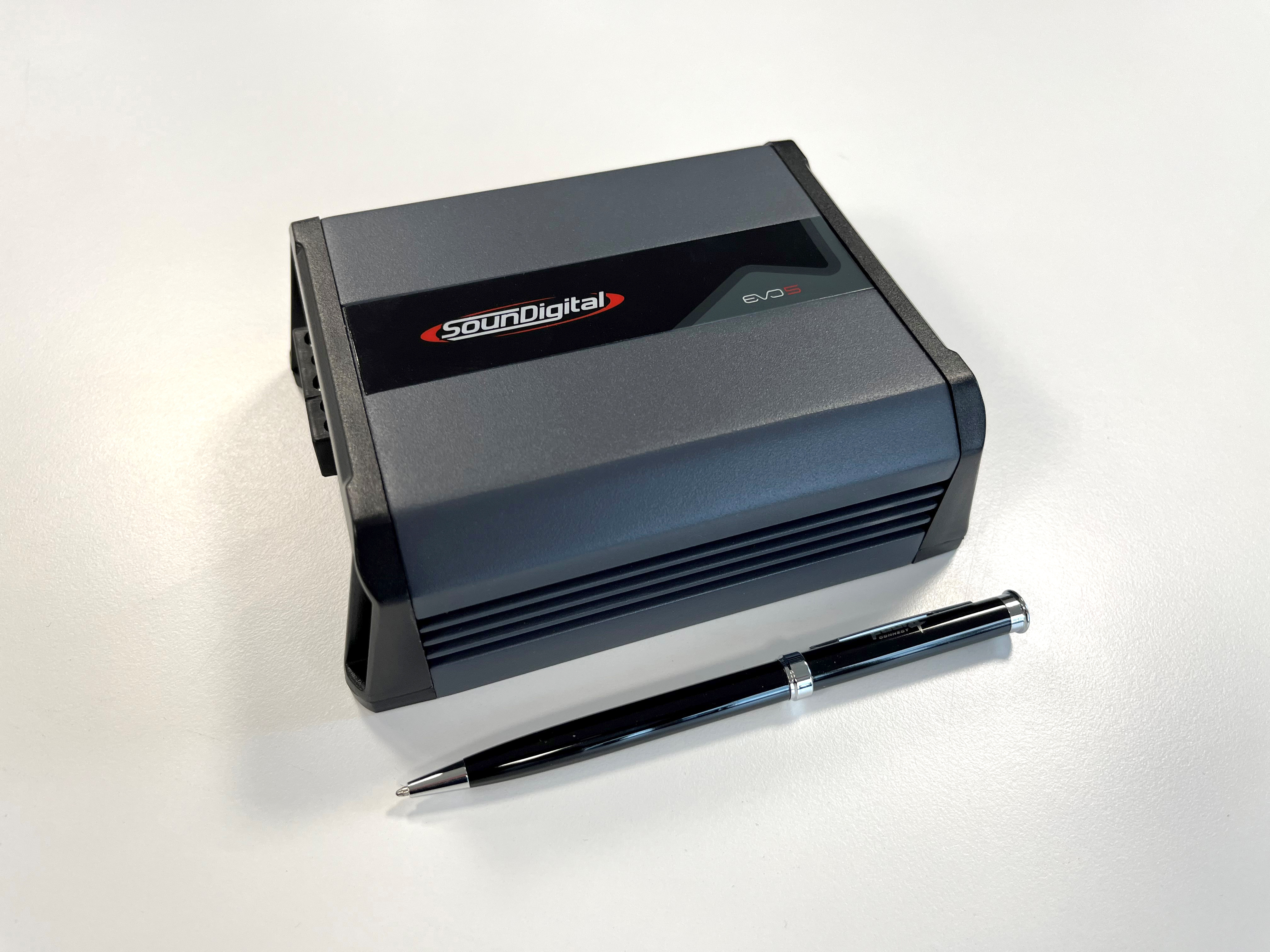

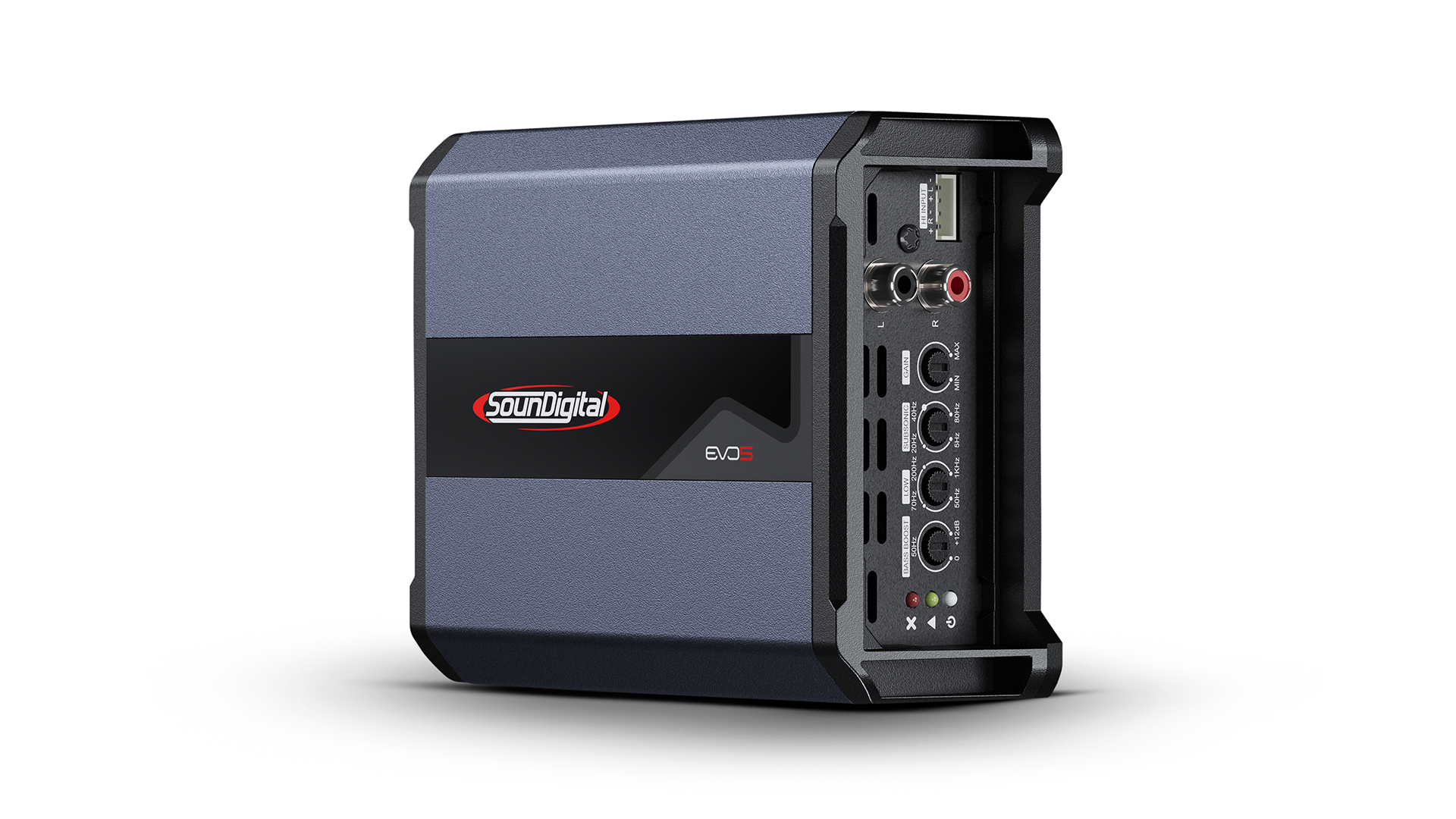

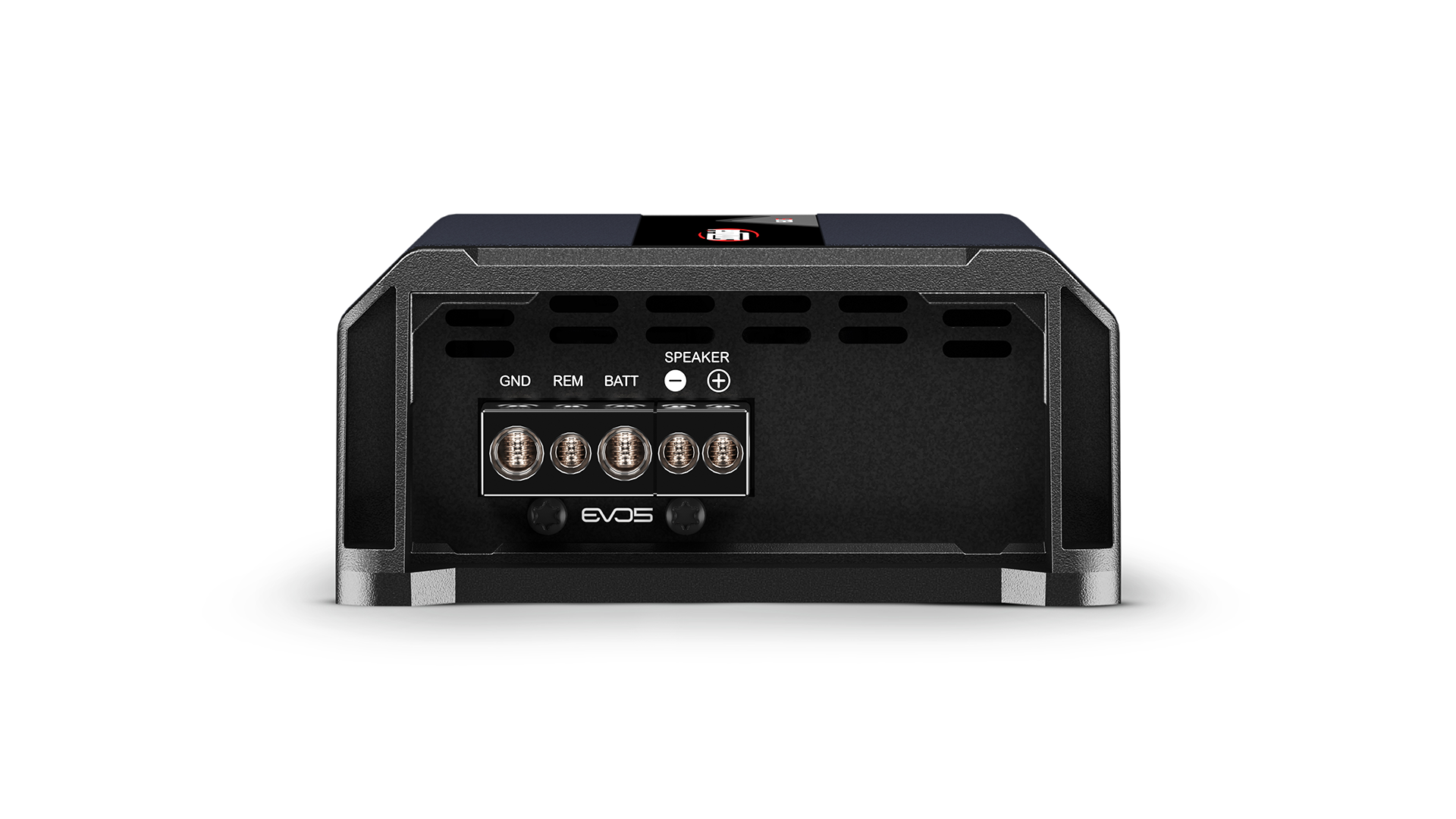

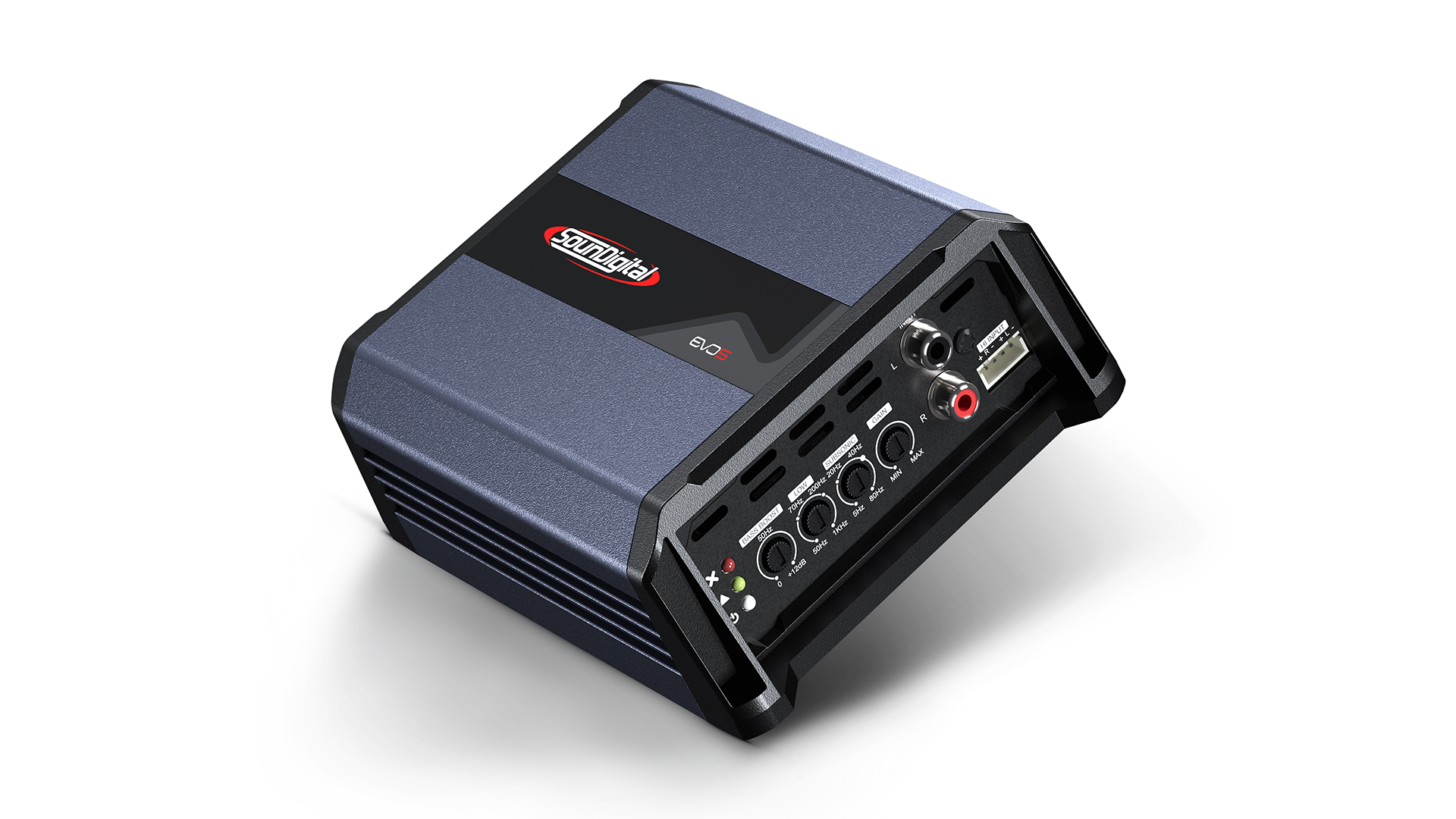

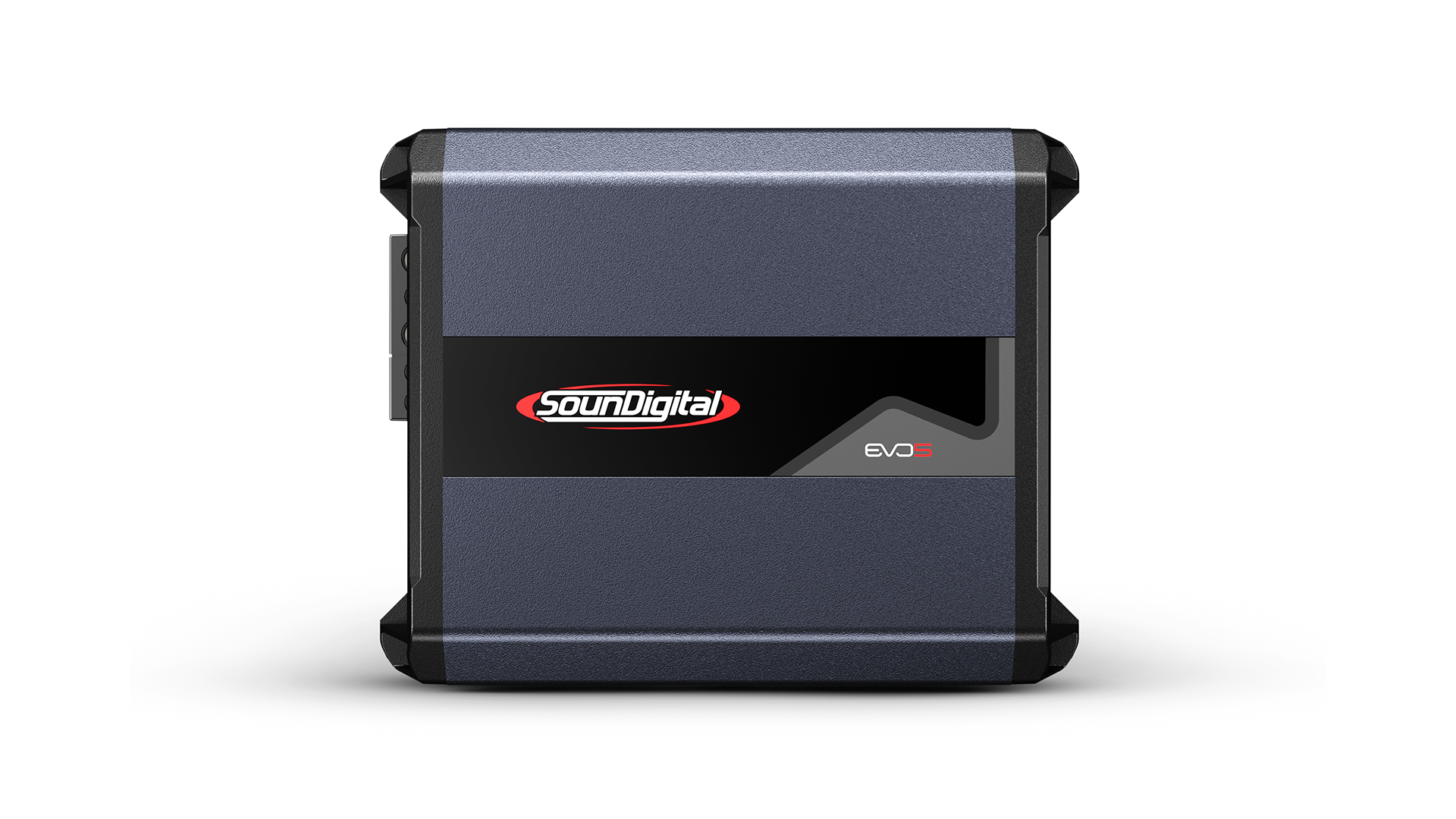

SounDigital 800.1 EVO 5 - 4 Ohm

The 800.1 EVO 5 is a compact, modern amplifier that delivers 800W RMS of power distributed over 1 channel.The amplifier features exclusive and patented technologies that make the sound experience cleaner and more faithful, in addition to ensuring better performance and efficiency for the most daring projects. Power @ 2Ω: N/A Power @ 4Ω: 800W Power @ 8Ω: 528W Frequency Response: 10Hz ~ 20kHz Subsonic Filter (HP 12dB/8º): 10Hz ~ 80Hz Low Pass Filter (LP 12dB/8º): 50Hz ~ 20kHz Operating Voltage: 8V ~ 16V SNR: 2Ω: 96dB 4Ω: 97dB Input Sensitivity (RCA): 0.2V ~ 4V Input Sensitivity (High Level input): 1.5V ~ 15V Current Draw (Music): 4Ω: 38A Current Draw With Resistive Load (1kHz @ 12.6V): 4Ω: 77A Total Efficiency: 4Ω: 78% Damping Factor (@100Hz Rated Impedance): 200 Power Cable: 10mm² (7AWG) Audio Output Cable: 2 x 2mm² (12 AWG) Recommended Fuse (Music): 40A Recommended Battery (Music): 60Ah Width: 4.4 in / 11,3 cm Length: 5.8 in / 14,8 cm Height: 2 in / 5,1 cm Weight: 1.54 lb / 0,7 Kg
