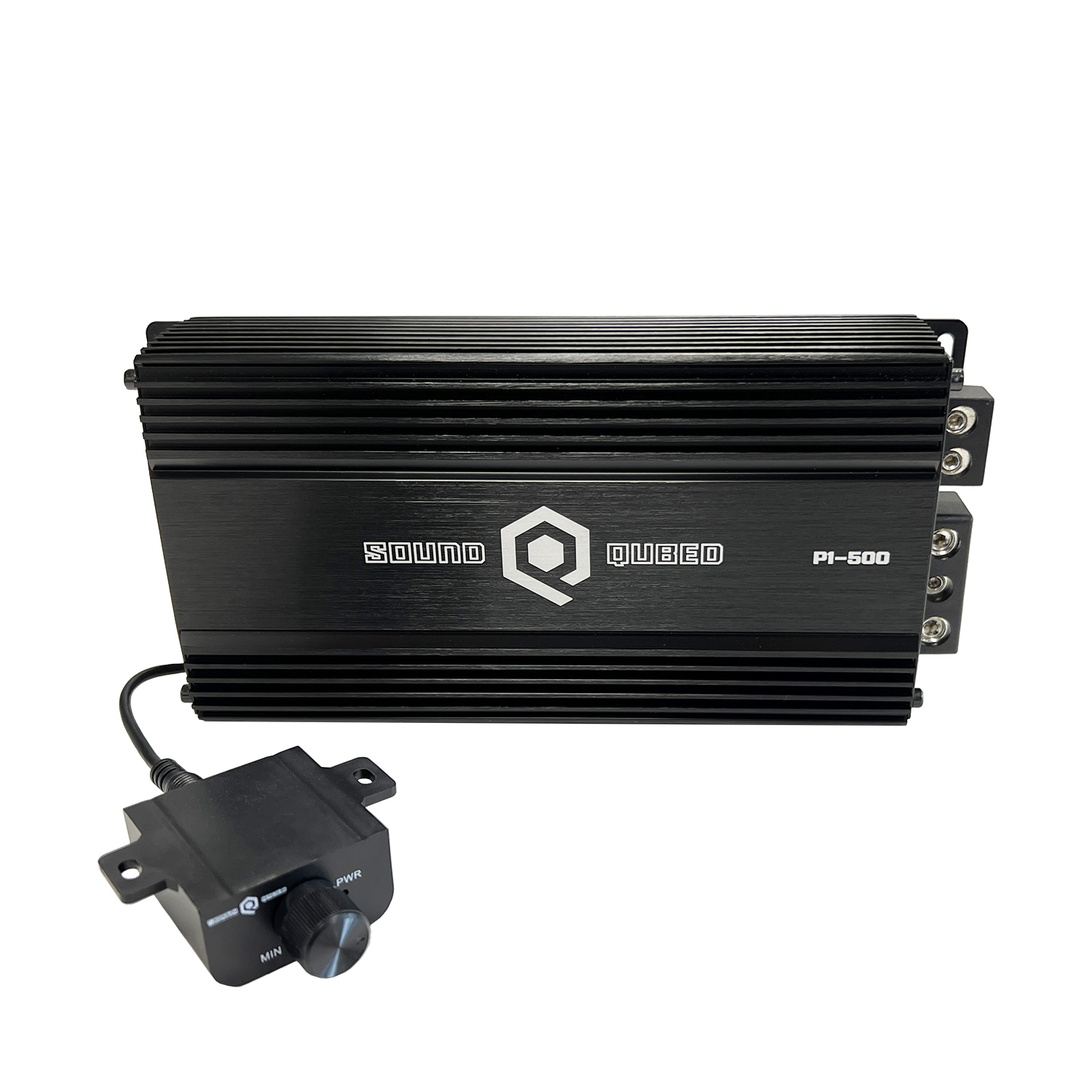

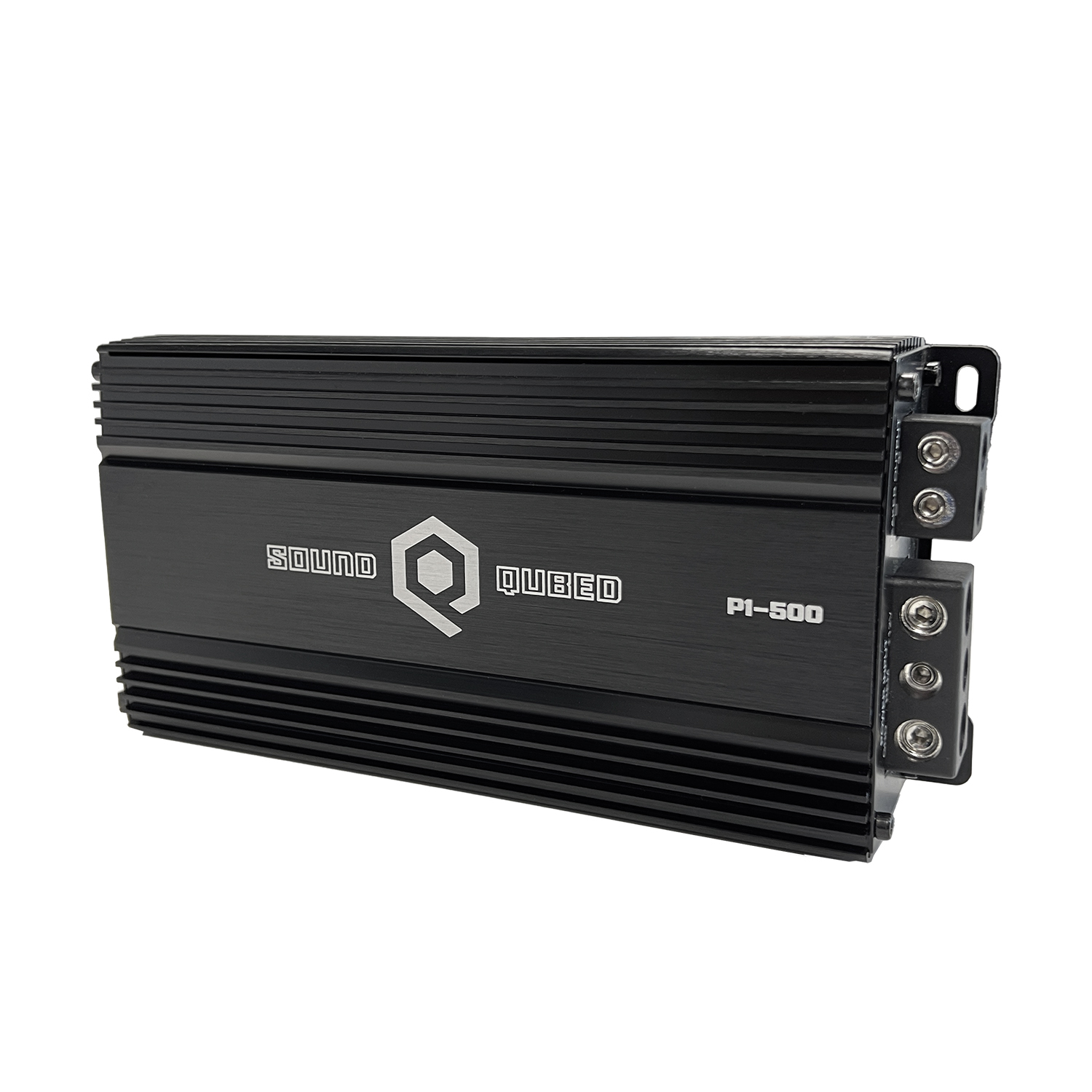

SoundQubed P1-500

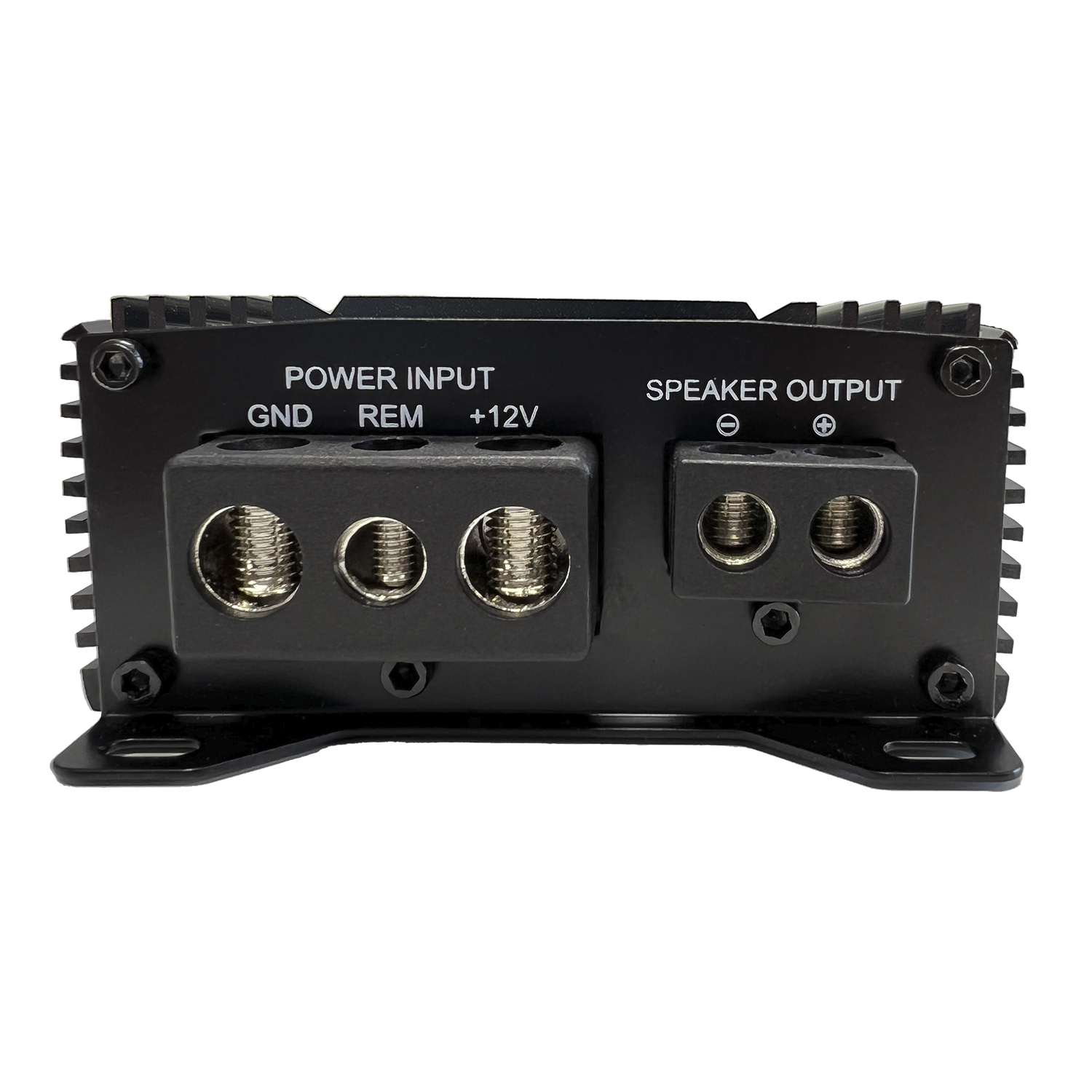

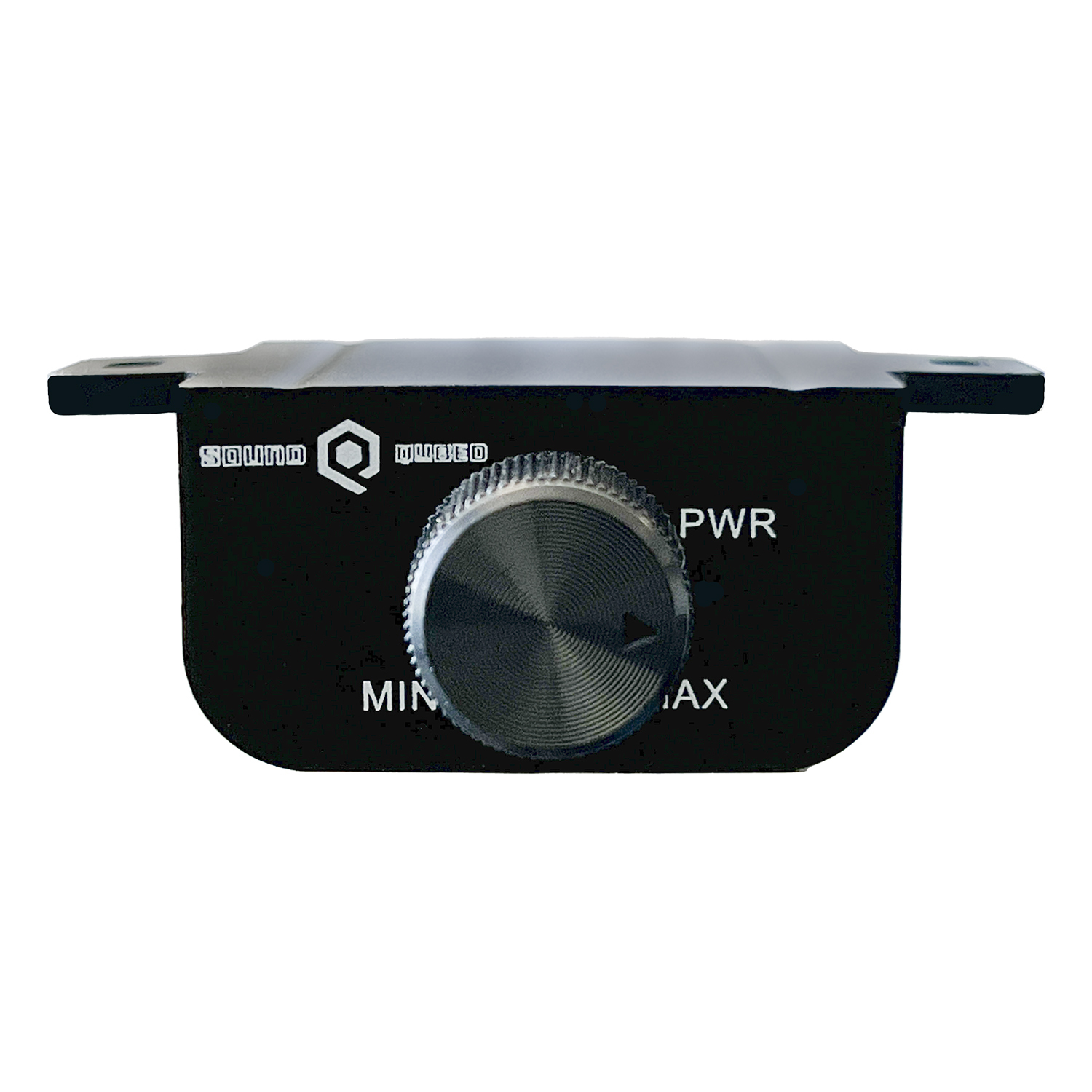

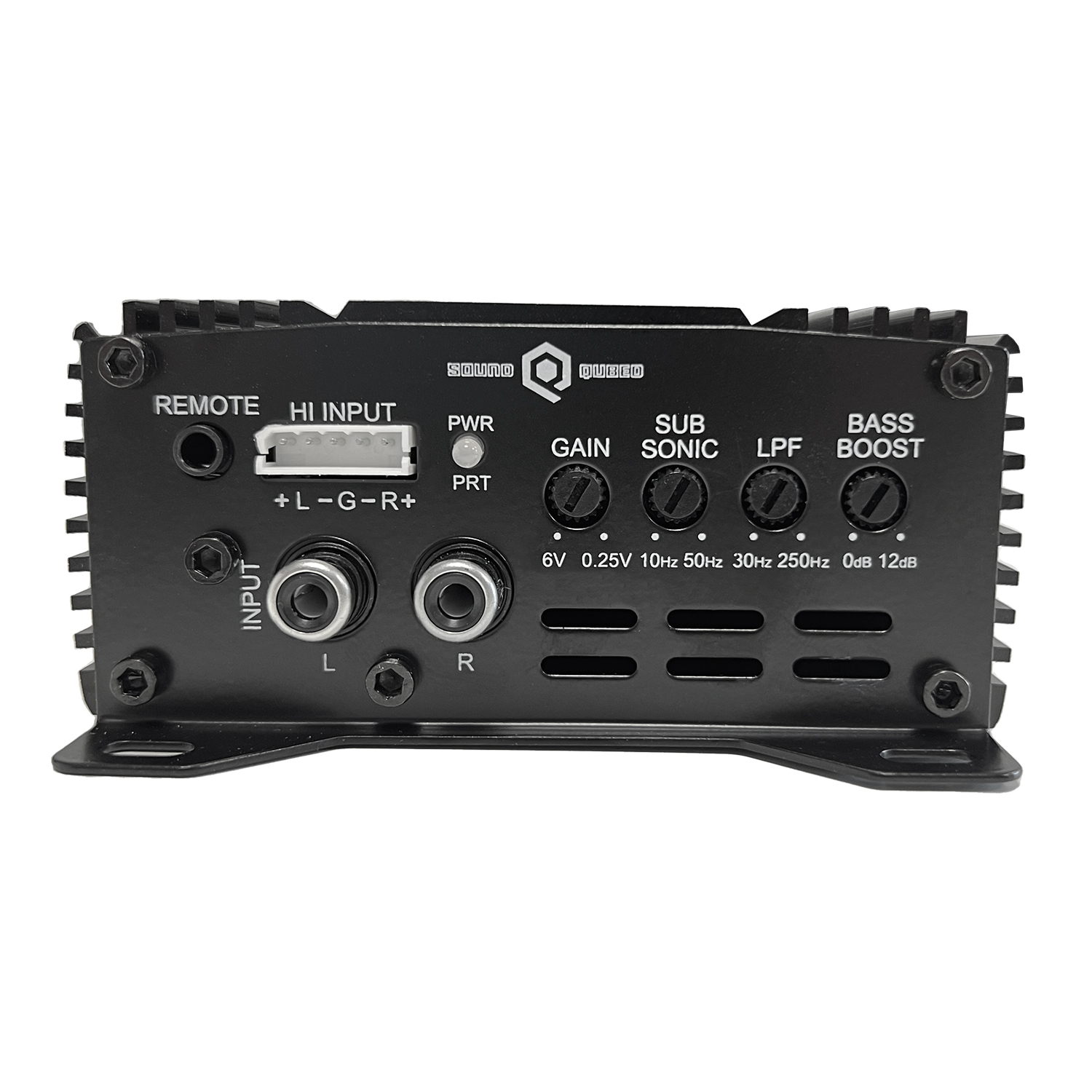

SoundQubed P-Series amplifiers are compact amplifiers with full size features. P1-500 is a 1 ohm stable monoblock subwoofer amplifier with a continous output power of 500 watts.The physical size of these amplifiers is very small so installation is painless even in a tighter car. The amplifiers also have speaker-level inputs, so you can connect to the car′s original player.- Mosfet power supply amplifier- 4 gauge set screw power terminals- 12 gauge set screw speaker terminals- Variable 12dB/oct crossovers- Remote subwoofer control- 5-way protection: Speaker short, thermal, overload, HI/LOW voltage, DC offset Operating voltage: 10-16V Test Voltage: 14.4V Channels: 1 Cont wattage @4 ohms: 250w Cont wattage @2 ohms: 390w Cont wattage @1 ohms: 500w Dynamic wattage: 1000 Max current draw ( amps ): 50A RCA input sensitivity: 6 - 2.5V High level input sensitivity: 20 - 1.1V S/N Ratio (dB) 85 Damping factor: 70 Frequency response: 10 - 250Hz THD: 0.1% High pass filter: 35 - 250Hz Subsonic filter: 35 - 250Hz Low pass filter: 35 -250Hz Remote subwoofer control: included Dimensions: 6.69 x 386 x 1.67 inches.
